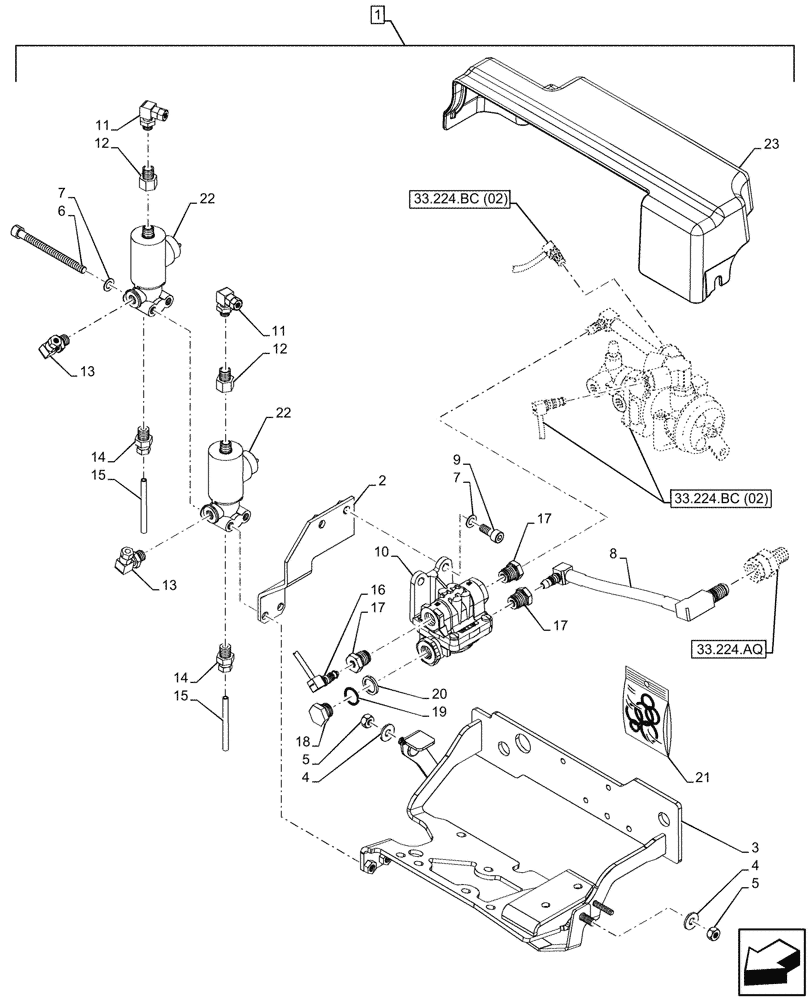

Запчасти Case IH MAXXUM 135 (88.100.33[14]) - DIA KIT, PNEUMATIC TRAILER BRAKE, UK (88) - ACCESSORIES

1

718267034

DIA KIT, TRACTOR

UK Pneumatic Air Brake Finishing Kit, Incl 2 - 23

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84143167

SUPPORT

1шт.

3

47667670

SUPPORT

1шт.

4

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

14047317

NUT,M8 x 1.25

2шт.

6

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

7

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

8

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

QRV to Coupler, 164mm

1шт.

9

14308934

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 10.9

2шт.

10

84157669

VALVE

1шт.

11

87678122

HYD CONNECTOR,M10 x 1

2шт.

12

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

13

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

14

82006828

ADAPTER

2шт.

15

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

16

47610083

TUBE

Air, 246mm

1шт.

17

87588079

HYD CONNECTOR,M16 x 1.5

3шт.

18

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

19

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

20

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

21

47980523

SEAL KIT

Pneumatic Traile Brake Valve

1шт.

22

84359255

SOLENOID VALVE,1.41A, 12 VDC,

2шт.

23

47695618

COVER

1шт.
