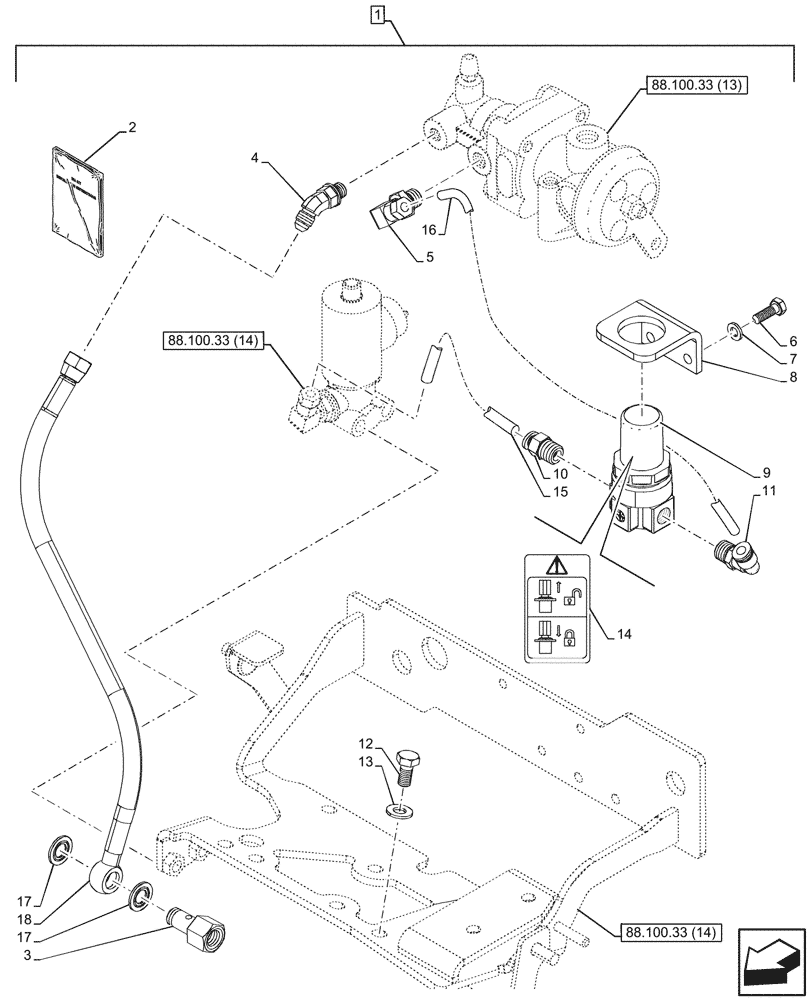

Запчасти Case IH MAXXUM 135 (88.100.33[12]) - DIA KIT, PNEUMATIC TRAILER BRAKE, UK (88) - ACCESSORIES

1

718267034

DIA KIT, TRACTOR

UK Pneumatic Air Brake Finishing Kit, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47745604

INSTRUCTION

1шт.

3

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

4

87588084

HYD CONNECTOR,M10 x 1

1шт.

5

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

1шт.

6

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

7

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

2шт.

8

87479476

BRACKET

1шт.

9

87678129

REGULATOR

1шт.

10

87677921

ADAPTER,6.00mm Tube, 1/4" BSPT

1шт.

11

87677922

90 ELBOW,6.00mm Tube, 1/4" BSPT

1шт.

12

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

13

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

14

84149764

DECAL

Pressure Regulator

1шт.

15

47610084

TUBE,6mm OD x 390mm L

Air Regulator, 6mm OD x 390mm

1шт.

16

47610086

TUBE,6mm OD x 270mm L

Air Regulator, 6mm OD x 270mm

1шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

18

87471639

HOSE,6.35mm ID x 390mm L, SAE 100R2

Advance Airbrakes

1шт.
