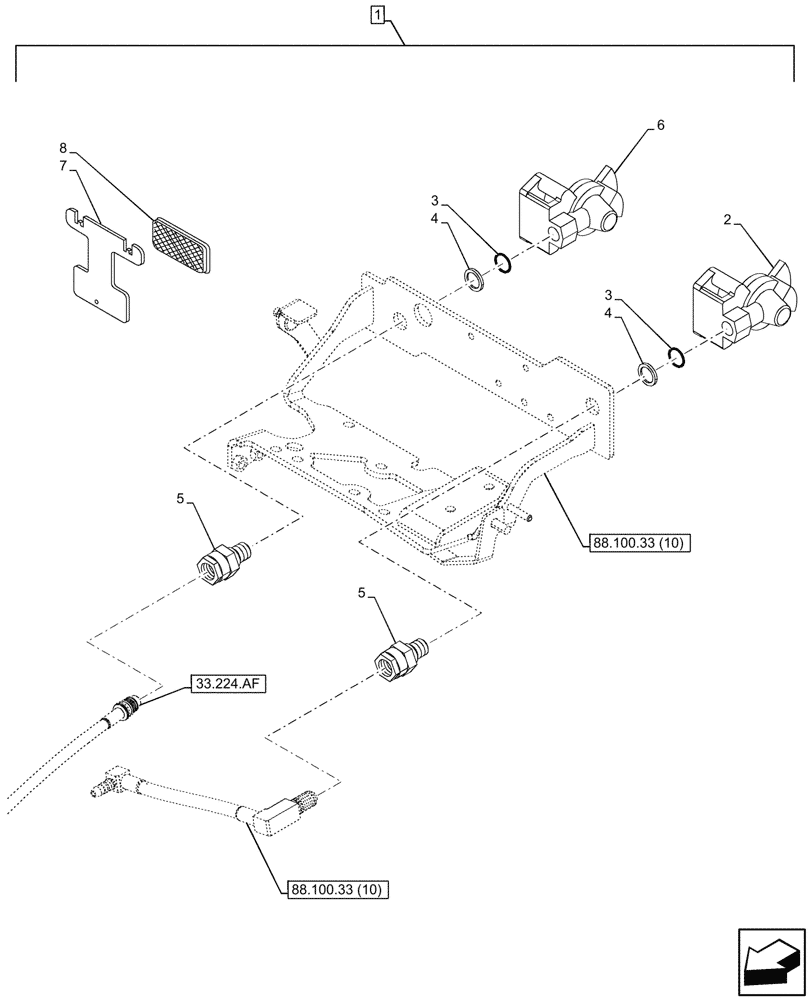

Запчасти Case IH MAXXUM 135 (88.100.33[11]) - DIA KIT, PNEUMATIC TRAILER BRAKE, UNIVERSAL (88) - ACCESSORIES

1

718266034

DIA KIT, TRACTOR

Universal Pneumatic Air Brake Finishing Kit, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

82001020

COUPLING

1шт.

3

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

4

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

5

87678128

ADAPTER

2шт.

6

82001019

COUPLING

1шт.

7

82030099

BRACKET

1шт.

8

82002957

REFLECTOR

Rear

1шт.
