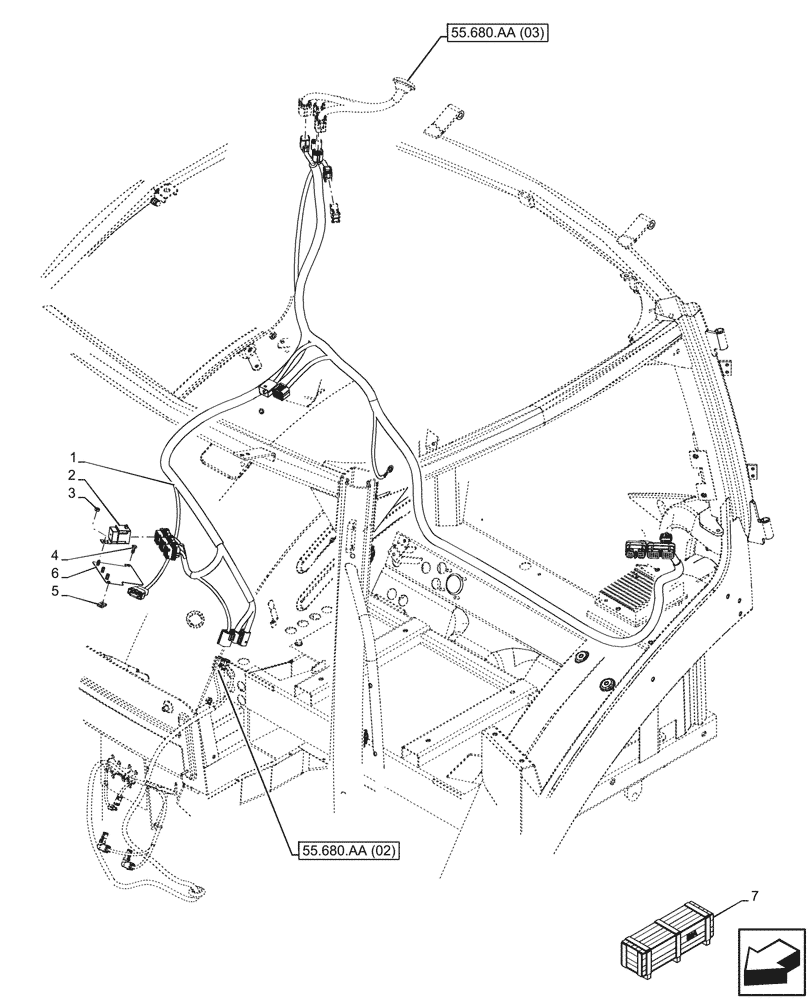

Запчасти Case IH MAXXUM 135 (55.680.AA[01]) - VAR - 743812 - AUTOGUIDANCE, HARNESS (55) - ELECTRICAL SYSTEMS

1

47579410

WIRE HARNESS

Autoguidance

1шт.

2

82017871

RELAY,12V, 20A

12V

3шт.

3

15896211

NUT,M6, Cl 8

3шт.

4

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

5

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

6

87744795

SUPPORT

1шт.

7

718083024

DIA KIT, TRACTOR

Autoguidance System Cvt Cl 3 Axle, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

718084024

DIA KIT, TRACTOR

Autoguidance System Cvt Cl 3.5 Axle, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
