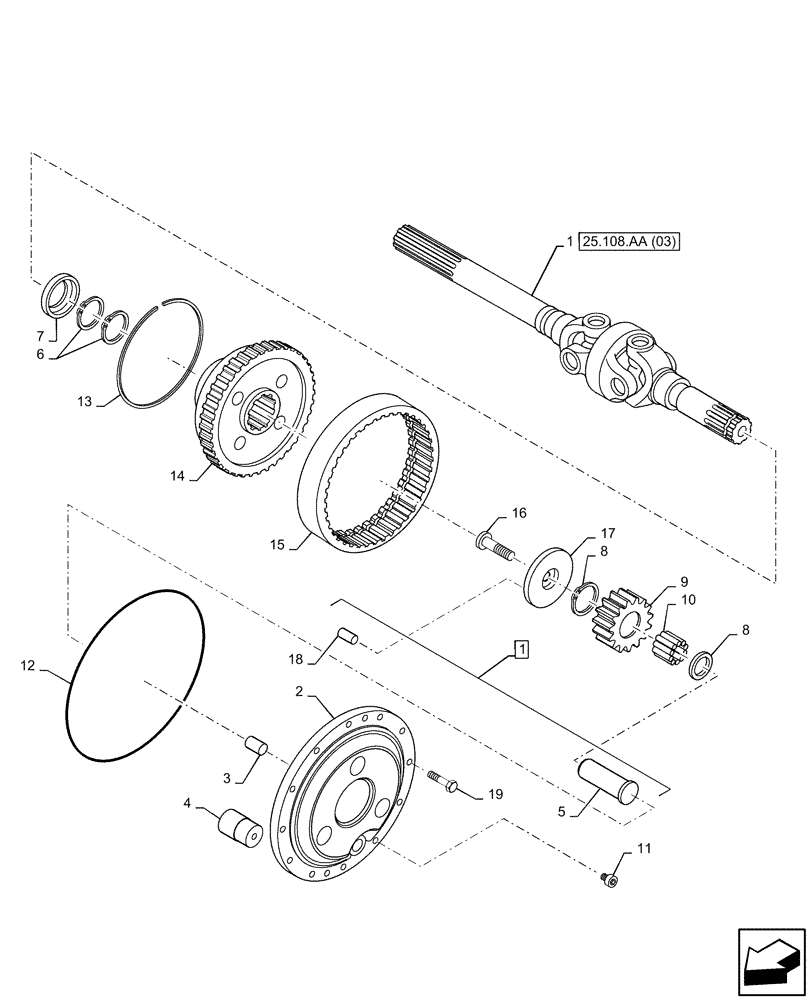

Запчасти Case IH MAXXUM 135 (25.108.AB[04]) - VAR - 758425, 758426, 758427, 758428, 758429 - FRONT AXLE, PLANETARY REDUCER (25) - FRONT AXLE SYSTEM

1

87473022

PLANET CARRIER

ASSY, Incl 2 - 5, 18, 19

1шт.

2

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

3

87604978

BUSHING

1шт.

4

87471121

PIN

3шт.

5

NSS

NOT SOLD SEPARAT

Support, incl in 1

1шт.

6

87525785

RING

2шт.

7

87592363

NOTCHED DISK

2шт.

8

87330360

THRUST WASHER

6шт.

9

87330345

IDLER PINION

3шт.

10

87330366

ROLLER BEARING,41.4mm ID x 51.4mm OD x 35.5mm W

3шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

12

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

2шт.

13

87330370

SNAP RING,242.20mm ID

1шт.

14

87330372

RING GEAR

1шт.

15

87330371

RING GEAR

1шт.

16

87571800

HEX SOC SCREW,M12 x 1.25 x 35mm

3шт.

17

87681967

SPACER

3шт.

18

10333210

DOWEL,M4 x 10.00mm

1шт.

19

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.
