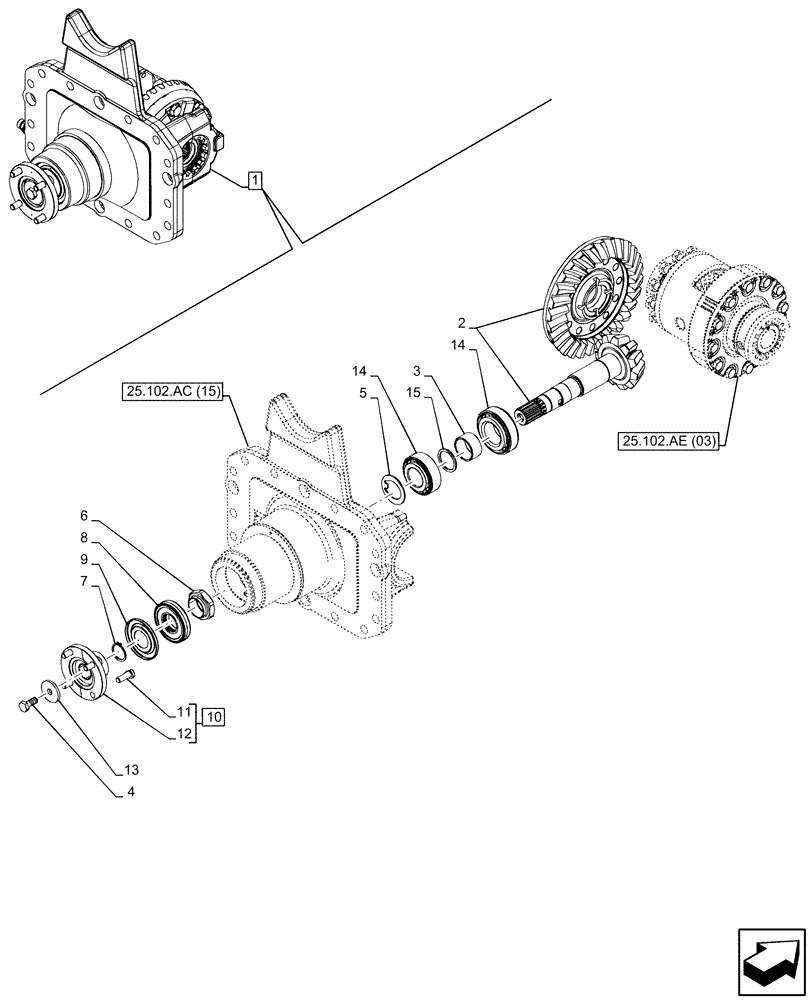

Запчасти Case IH MAXXUM 135 (25.102.AC[16]) - VAR - 758427, 758428 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, DIFFERENTIAL, BEVEL GEAR (25) - FRONT AXLE SYSTEM

1

84294287

DIFFERENTIAL ASSY

ASSY, Incl 2 - 15

1шт.

See also Differential Components in Figure 25.102.AC (15), 25.102.AE (03)

1шт.

2

84289744

BEVEL GEAR,11T/ 28T

Ratio 11/28

1шт.

3

87354461

SPACER

1шт.

4

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

1шт.

5

84161677

E-RING

1шт.

6

84289762

NUT,M40,1.5mm Pitch

1шт.

7

11068476

SNAP RING,M36, Ext

1шт.

8

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

9

87528144

SEAL PROTECTION

1шт.

10

87350786

FLANGE

ASSY, Incl 11, 12

1шт.

11

87550808

PIN,12.5mm OD x 37mm L

4шт.

12

NSS

NOT SOLD SEPARAT

Hub, Incl in 10

1шт.

13

84293852

WASHER,13.00mm ID x 47.00mm OD x 8.00mm

1шт.

14

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

15

5169287

SHIM,41.7mm ID x 48mm OD x 2.2mm Thk

1шт.

15

5169288

SHIM,41.7mm ID x 48mm OD x 2.25mm Thk

1шт.

15

5169289

SHIM,41.7mm ID x 48mm OD x 2.3mm Thk

1шт.

15

5169290

SHIM,41.7mm ID x 48mm OD x 2.35mm Thk

1шт.

15

5169291

SHIM,41.7mm ID x 48mm OD x 2.4mm Thk

1шт.

15

5169292

SHIM,41.7mm ID x 48mm OD x 2.45mm Thk

1шт.

15

5169293

SHIM,41.7mm ID x 48mm OD x 2.5mm Thk

1шт.

15

5169294

SHIM,41.7mm ID x 48mm OD x 2.55mm Thk

1шт.

15

5169295

SHIM,41.7mm ID x 48mm OD x 2.6mm Thk

1шт.

15

5169296

SHIM,41.7mm ID x 48mm OD x 2.65mm Thk

1шт.

15

5169297

SHIM,41.7mm ID x 48mm OD x 2.7mm Thk

1шт.

15

5169298

SHIM,41.7mm ID x 48mm OD x 2.75mm Thk

1шт.

15

5169299

SHIM,41.7mm ID x 48mm OD x 2.8mm Thk

1шт.

15

5169300

SHIM,41.7mm ID x 48mm OD x 2.85mm Thk

1шт.

15

5169301

SHIM,41.7mm ID x 48mm OD x 2.9mm Thk

1шт.

15

5169302

SHIM,41.7mm ID x 48mm OD x 2.95mm Thk

1шт.

15

5169303

SHIM,41.7mm ID x 48mm OD x 3mm Thk

1шт.

15

5169304

SHIM,41.7mm ID x 48mm OD x 3.05mm Thk

1шт.

15

5169305

SHIM,41.7mm ID x 48mm OD x 3.1mm Thk

1шт.

15

5169306

SHIM,41.7mm ID x 48mm OD x 3.15mm Thk

1шт.

15

5169307

SHIM,41.7mm ID x 48mm OD x 3.2mm Thk

1шт.

15

5169308

SHIM,41.7mm ID x 48mm OD x 3.25mm Thk

1шт.

15

5169309

SHIM,41.7mm ID x 48mm OD x 3.3mm Thk

1шт.

15

5169310

SHIM,41.7mm ID x 48mm OD x 3.35mm Thk

1шт.

15

5169311

SHIM,41.70mm ID x 48.00mm OD x 3.40mm T

1шт.

15

5169312

SHIM,41.7mm ID x 48mm OD x 3.45mm Thk

1шт.
