Запчасти Case IH MAXXUM 135 (25.102.AC[14]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, DIFFERENTIAL, BEVEL GEAR (25) - FRONT AXLE SYSTEM

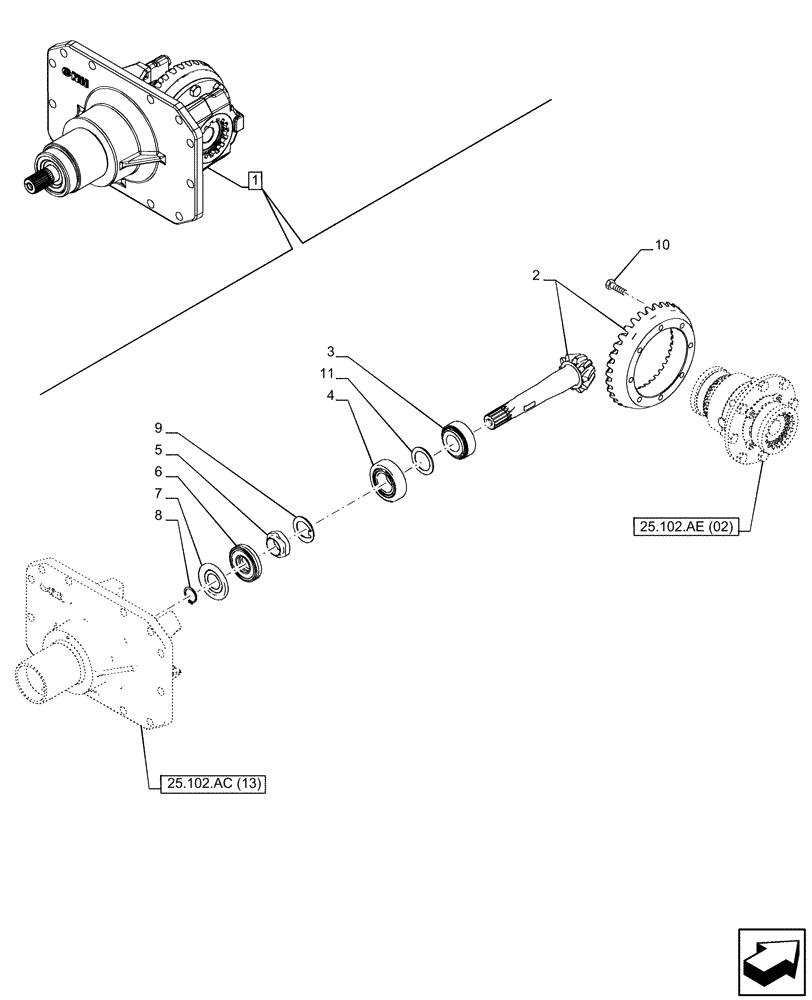

Схема запчастей Case IH MAXXUM 135 - (25.102.AC[14]) - VAR - 758425, 758426 - FRONT AXLE, W/ HYDRAULIC DIFFERENTIAL LOCK, W/ STEERING SENSORS, DIFFERENTIAL, BEVEL GEAR (25) - FRONT AXLE SYSTEM
25.102.ae (02)
9
3
11
10
6
7
5
2
8
1
4
25.102.ac (13)

Артикул

Название

Примечание

Количество

1

84294283

DIFFERENTIAL ASSY

ASSY, Incl 2 - 14

1шт.

See also Differential Components in Figure 25.102.AC (13), 25.102.AE (02)

1шт.

2

84287310

BEVEL GEAR,11T/ 28T

Ratio 11/28

1шт.

3

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

1шт.

5

84289068

CROWN NUT,M35 x 1.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.

9

84285936

SPECIAL WASHER

1шт.

10

84394067

BOLT

12шт.

11

4997456

SHIM,35.1mm ID x 43mm OD x 2.5mm Thk

1шт.

11

5129151

SHIM,35.1mm ID x 43mm OD x 2.55mm Thk

1шт.

11

4997457

SHIM,35.1mm ID x 43mm OD x 2.6mm Thk

1шт.

11

5129152

SHIM,35.1mm ID x 43mm OD x 2.65mm Thk

1шт.

11

4997458

SHIM,35.1mm ID x 43mm OD x 2.7mm Thk

1шт.

11

5129153

SHIM,35.1mm ID x 43mm OD x 2.75mm Thk

1шт.

11

4997459

SHIM,35.1mm ID x 43mm OD x 2.8mm Thk

1шт.

11

5129154

SHIM,35.1mm ID x 43mm OD x 2.85mm Thk

1шт.

11

4997460

SHIM,35.1mm ID x 43mm OD x 2.9mm Thk

1шт.

11

5129155

SHIM,35.1mm ID x 43mm OD x 2.95mm Thk

1шт.

11

4997461

SHIM,35.00mm ID x 43.00mm OD x 3.00mm T

1шт.

11

5129156

SHIM,35.00mm ID x 43.00mm OD x 3.05mm T

1шт.

11

4997462

SHIM,35.00mm ID x 43.00mm OD x 3.10mm T

1шт.

11

5129157

SHIM,35.00mm ID x 43.00mm OD x 3.15mm T

1шт.

11

4997463

SHIM,35.00mm ID x 43.00mm OD x 3.20mm T

1шт.

11

5129158

SHIM,35.00mm ID x 43.00mm OD x 3.25mm T

1шт.

11

5101234

SHIM,35.00mm ID x 43.00mm OD x 3.30mm Thk

1шт.

11

5129159

SHIM,35.00mm ID x 43.00mm OD x 3.35mm T

1шт.

11

5101235

SHIM,35.00mm ID x 43.00mm OD x 3.40mm T

1шт.

11

5129160

SHIM,35.00mm ID x 43.00mm OD x 3.45mm Thk

1шт.

11

5101236

SHIM,35.00mm ID x 43.00mm OD x 3.50mm Thk

1шт.

11

5129161

SHIM,35.00mm ID x 43.00mm OD x 3.55mm T

1шт.

11

5101237

SHIM,35.00mm ID x 43.00mm OD x 3.60mm T

1шт.

11

5129162

SHIM,35.00mm ID x 43.00mm OD x 3.65mm T

1шт.

11

5101238

SHIM,35.00mm ID x 43.00mm OD x 3.70mm T

1шт.

11

5169313

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.75mm Thk

1шт.

11

5169314

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.80mm Thk

1шт.

11

5169315

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.85mm Thk

1шт.

11

5169316

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.90mm Thk

1шт.

11

5169317

SHIM,35.10 - 35.40mm ID x 43mm OD x 3.95mm Thk

1шт.

11

5169318

SHIM,35.1mm ID x 43mm OD x 4mm Thk

1шт.

11

5169319

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.05mm Thk

1шт.

11

5169320

SHIM,35.1mm ID x 43mm OD x 4.1mm Thk

1шт.

11

5169321

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.15mm Thk

1шт.

11

5169322

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.20mm Thk

1шт.

11

5169323

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.25mm Thk

1шт.

11

5169324

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.30mm Thk

1шт.

11

5169325

SHIM,35.1mm ID x 43mm OD x 4.35mm Thk

1шт.

11

5169326

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.40mm Thk

1шт.

11

5169327

SHIM,35.1mm ID x 43mm OD x 4.45mm Thk

1шт.

11

5169328

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.50mm Thk

1шт.

11

5169329

SHIM,35.1mm ID x 43mm OD x 4.55mm Thk

1шт.

11

5169330

SHIM,35.1mm ID x 43mm OD x 4.6mm Thk

1шт.

11

5169331

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.65mm Thk

1шт.

11

5169332

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.70mm Thk

1шт.

11

5169333

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.75mm Thk

1шт.

11

5169334

SHIM,35.10 - 35.40mm ID x 43mm OD x 4.80mm Thk

1шт.

Выбрано товаров: 58
