Запчасти Case IH MAXXUM 130 (1.42.0/02[01A]) - POWER STEERING DELIVERY AND RETURN PIPES FOR 16X16 AND 17X16 TRANSMISSION - D6562 (04) - FRONT AXLE & STEERING

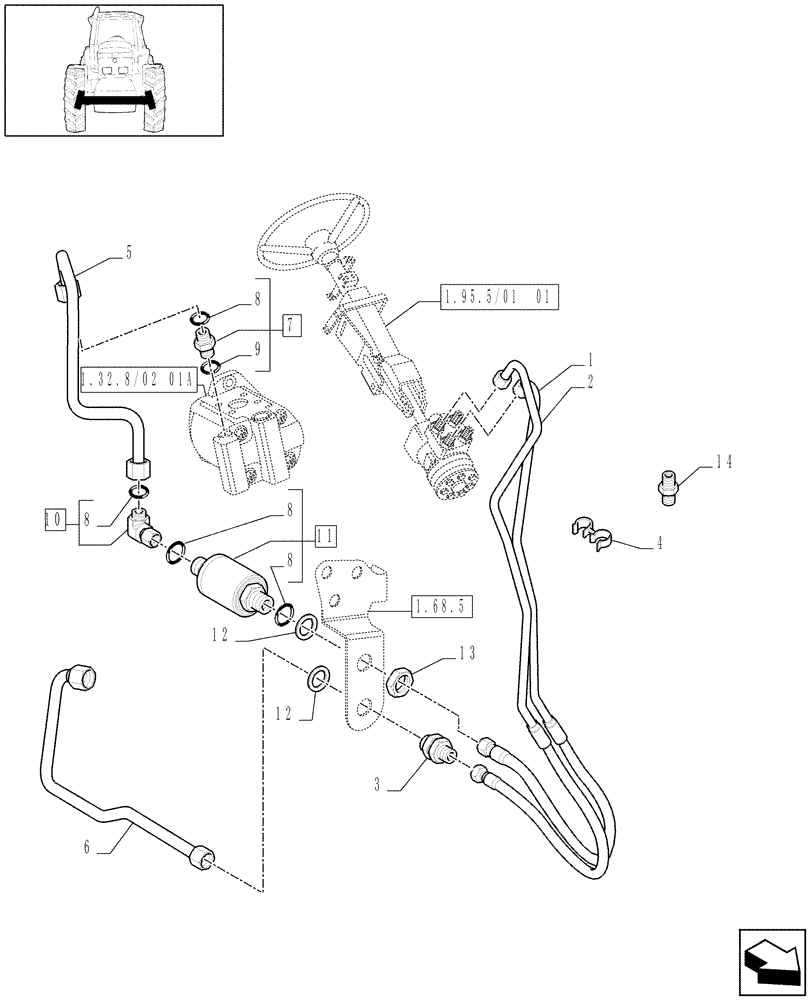

Схема запчастей Case IH MAXXUM 130 - (1.42.0/02[01A]) - POWER STEERING DELIVERY AND RETURN PIPES FOR 16X16 AND 17X16 TRANSMISSION - D6562 (04) - FRONT AXLE & STEERING
1.95.5/01 01
12
9
7
8
13
1
6
11
5
8
8
2
3
1.32.8/02 01a
1.68.5
14
8
10
12
4

Артикул

Название

Примечание

Количество

1

82036217

HYD TUBE

Return, Serial Range: -C6554

1шт.

1

82036218

TUBE

Return, Serial Range: -C6554

1шт.

For Cab with Suspension, VAR.330658

1шт.

1

84181998

HYD TUBE,16 mm OD

Return, Serial Range: D6554-C6870

1шт.

1

84295841

HYD TUBE

Return, Start Serial: D6870

1шт.

1

84182516

HYD TUBE,16 mm OD

Return, Serial Range: D6554-C6870

1шт.

For Cab with Suspension, VAR.330658

1шт.

1

84295843

HYD TUBE

Return, Start Serial: D6870

1шт.

For Cab with Suspension, VAR.330658

1шт.

1

84182538

HYD TUBE,13 mm ID x 16 mm OD

Return, Start Serial: D6554

1шт.

Fast Steer with 113 CCLS pump, VAR.331659

1шт.

2

82036340

HYD TUBE

Feed, Serial Range: -C6554

1шт.

2

82036217

HYD TUBE

Feed, Serial Range: -C6554

1шт.

For CAB with Suspension, VAR.330658

1шт.

2

84181995

HYD TUBE,16 mm OD

Feed, Serial Range: D6554-C6870

1шт.

2

84295842

HYD TUBE

Feed, Start Serial: D6870

1шт.

2

84182518

HYD TUBE,16 mm OD

Feed, Serial Range: D6554-C6870

1шт.

For Cab with Suspension, VAR.330658

1шт.

2

84295844

HYD TUBE

Feed, Start Serial: D6870

1шт.

For Cab with Suspension, VAR.330658

1шт.

2

84182546

HYD TUBE,13 mm ID x 16 mm OD

Feed, Start Serial: D6554

1шт.

Fast Steer with 113 CCLS pump, VAR.331659

1шт.

3

84169871

HYD CONNECTOR

1шт.

4

82035888

CLIP,16mm

1шт.

5

84168462

PIPE

To Steering Motor

1шт.

6

84168465

TUBE,16 mm OD

From Steering Motor

1шт.

7

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

1шт.

11

84169702

FILTER

DEF FILTER

1шт.

12

84169872

SPACER

2шт.

13

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

14

82030315

HYD CONNECTOR

1шт.

Выбрано товаров: 34
