Запчасти Case IH MAXXUM 130 (1.40. 5/10[01]) - (CL.3) SUSPENDED FRONT AXLE WITH DOG CLUTCH AND BRAKES - SHAFT AND EPICYCLIC GEAR TRAIN - C5954 (VAR.330427) (04) - FRONT AXLE & STEERING

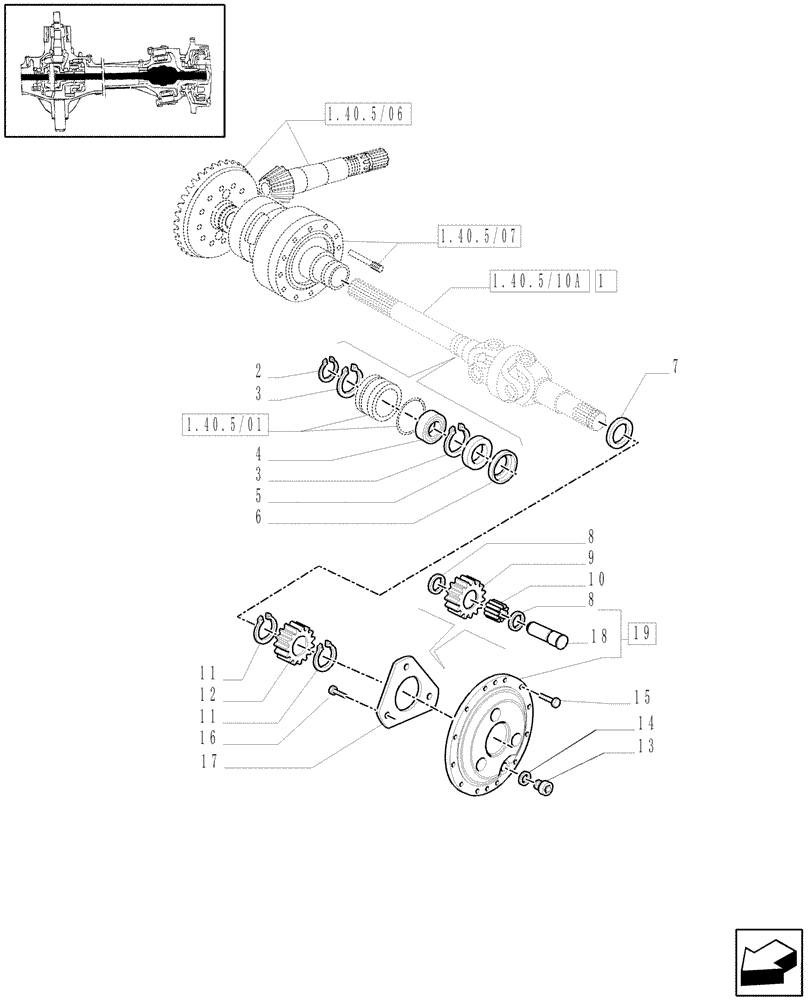

Схема запчастей Case IH MAXXUM 130 - (1.40. 5/10[01]) - (CL.3) SUSPENDED FRONT AXLE WITH DOG CLUTCH AND BRAKES - SHAFT AND EPICYCLIC GEAR TRAIN - C5954 (VAR.330427) (04) - FRONT AXLE & STEERING
14
6
1.40.5/10a
17
7
19
8
2
12
1.40.5/07
1.40.5/01
1.40.5/06
9
5
1
11
16
18
3
4
3
8
11
15
13
10

Артикул

Название

Примечание

Количество

1

87521538

AXLE-SHAFT, ARTICULA

ASSY

2шт.

2

11068876

SNAP RING,M40, Ext

2шт.

3

11061376

SNAP RING,M68, Int

4шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40 x 68 x 15

2шт.

5

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

45 x 68 x 12

2шт.

6

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

7

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

62 x 42 x 21.5

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

D=30

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

14

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

15

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

16

14274424

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

17

5152324

LOCKING RING,4mm Thk

2шт.

18

87304540

PIN,30.3mm OD x 68mm L

68MM

6шт.

19

87310820

CARRIER,Planetary

2шт.

Выбрано товаров: 19
