Запчасти Case IH MAXXUM 130 (1.40. 5/02[01]) - (CL.3) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND BRAKES - STEERING AXLES AND HUBSS - C6449 (VAR.330427) (04) - FRONT AXLE & STEERING

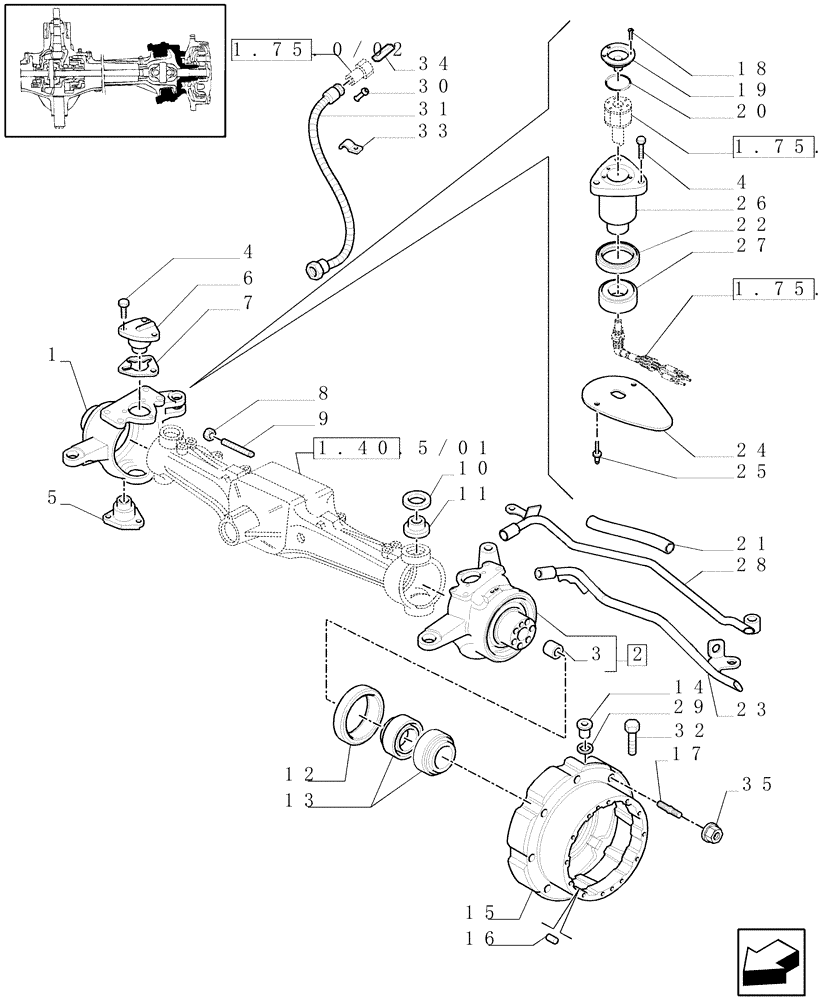

Схема запчастей Case IH MAXXUM 130 - (1.40. 5/02[01]) - (CL.3) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND BRAKES - STEERING AXLES AND HUBSS - C6449 (VAR.330427) (04) - FRONT AXLE & STEERING
11
8
27
25
23
4
7
21
30
31
22
29
3
26
20
2
6
15
10
9
33
5
34
12
24
16
28
35
18
19
4
32
1.40.5/01
1.75.0/02
1.75.0/02
1.75.0/02
13
1
17
14

Артикул

Название

Примечание

Количество

1

87529787

KNUCKLE

ASSY. RH

1шт.

2

87529864

KNUCKLE

ASSY. LH

1шт.

3

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

2шт.

4

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

5

87333763

BALL STUD

BALL PIN

2шт.

6

87361688

BALL STUD

BALL PIN

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

0.20MM

1шт.

8

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

190X220X15/17

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538x158.750x23.02

4шт.

14

10278301

PLUG,M28 x 1.5 x 11, Brass

2шт.

15

87529978

HUB

ASSY, Incl. 16, 17

2шт.

16

4985063

DOWEL,12mm OD x 20mm L

4шт.

17

87618916

STUD

16шт.

18

10384911

SCREW,Slotted Countersunk, M5 x 12mm

, Serial Range: -C5742

3шт.

18

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

, Start Serial: D5742

3шт.

19

87309292

PIN

, Serial Range: -C5731

1шт.

19

87574551

PIN

, Start Serial: D5731

1шт.

20

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

21

87329095

HOSE PROTECTION

100MM, Serial Range: -C5885

1шт.

21

87619627

HOSE PROTECTION

100MM, Start Serial: D5885

1шт.

22

47137702

SEAL,56mm ID x 70mm OD x 10mm Thk

1шт.

23

87717287

HYD TUBE,12mm OD

, Start Serial: D5885

1шт.

24

87315098

SHIELD

1шт.

25

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

26

87382577

BALL STUD

BALL PIN

1шт.

27

47137677

SPH ROLLER BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

1шт.

28

87535930

PIPE

, Serial Range: -C5742

1шт.

28

87571760

PIPE

, Serial Range: D5742-C5885

1шт.

29

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

28MM

2шт.

30

82918419

PLUG

1шт.

31

82016109

FLEXIBLE SHEATH

, Serial Range: -C5885

1шт.

31

87658190

FLEXIBLE SHEATH

, Start Serial: D5885

1шт.

32

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

, Serial Range: -C5742

1шт.

32

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D5742

1шт.

33

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

34

82918451

SPACER

1шт.

35

87678013

NUT,M16 x 1.5

16шт.

Выбрано товаров: 43
