Запчасти Case IH MAXXUM 130 (1.40. 3/07[01]) - (CL.3) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - DIFFERENTIAL - C5954 (VAR.330409) (04) - FRONT AXLE & STEERING

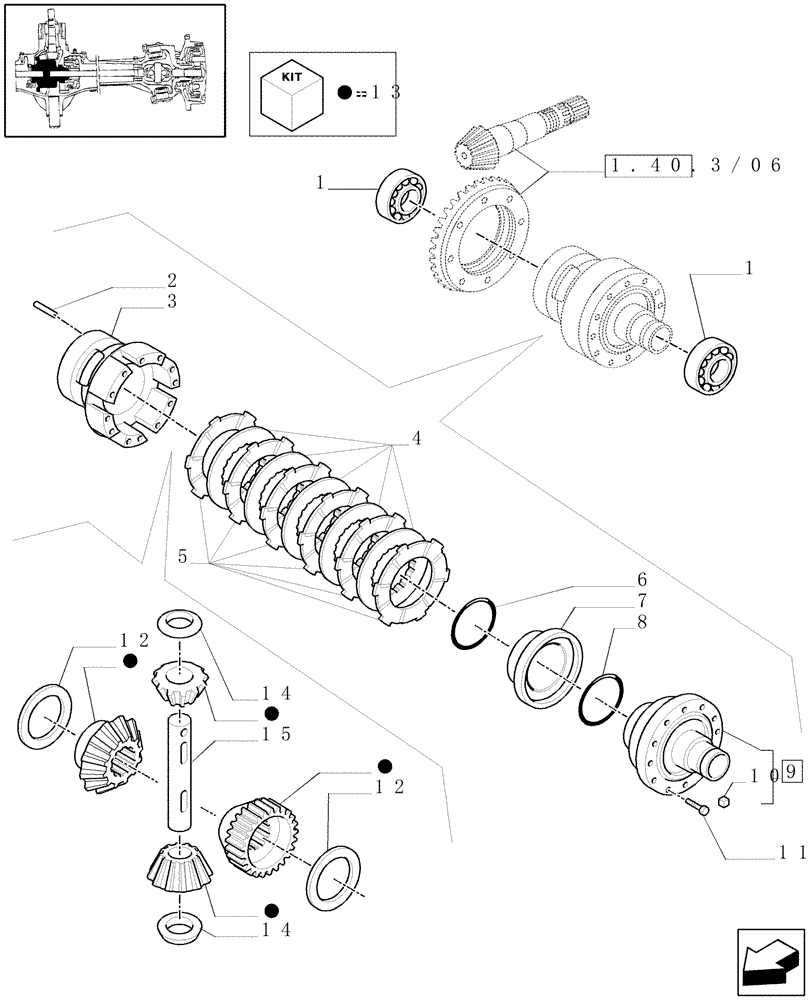

Схема запчастей Case IH MAXXUM 130 - (1.40. 3/07[01]) - (CL.3) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - DIFFERENTIAL - C5954 (VAR.330409) (04) - FRONT AXLE & STEERING
1
13
9
11
12
14
14
10
4
6
13
13
15
13
13
13
3
1
1.40.3/06
7
5
12
8
2

Артикул

Название

Примечание

Количество

1

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

60x95x23

2шт.

2

5192487

ROLL PIN

1шт.

3

87519910

HOUSING

1шт.

4

5193452

DISC

5шт.

5

5192489

DISC

6шт.

6

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

1шт.

7

5192492

PISTON

1шт.

8

14465181

O-RING,2.859" ID x 3.127" OD x 0.139"

1шт.

9

87331240

HALF-FLANGE

1шт.

10

5198864

PLUG

1шт.

11

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

12

5192568

SHIM,45.00mm ID x 66.00mm OD x 2.60mm

1шт.

12

5192569

SHIM,45.00mm ID x 66.00mm OD x 2.70mm

1шт.

12

5192570

SHIM,45.00mm ID x 66.00mm OD x 2.80mm

1шт.

12

5192571

SHIM,45.00mm ID x 66.00mm OD x 2.90mm

1шт.

12

5192475

SHIM,45.00mm ID x 66.00mm OD x 3.00mm

1шт.

12

5192572

SHIM,45.00mm ID x 66.00mm OD x 3.10mm

1шт.

12

5192573

SHIM,45.00mm ID x 66.00mm OD x 3.20mm

1шт.

12

5192574

SHIM,45.00mm ID x 66.00mm OD x 3.30mm

1шт.

12

5192575

SHIM,45.00mm ID x 66.00mm OD x 3.40mm

1шт.

13

47129159

GEAR SET

LH

1шт.

14

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

15

5192486

PIN

1шт.

Выбрано товаров: 23
