Запчасти Case IH MAXXUM 130 (1.40. 3/06[02A]) - (CL.3) FRONT AXLE WITH DOG CLUTCH AND STEERING SENSOR - ADJUSTING SHIMS - D5954 (VAR.330409) (04) - FRONT AXLE & STEERING

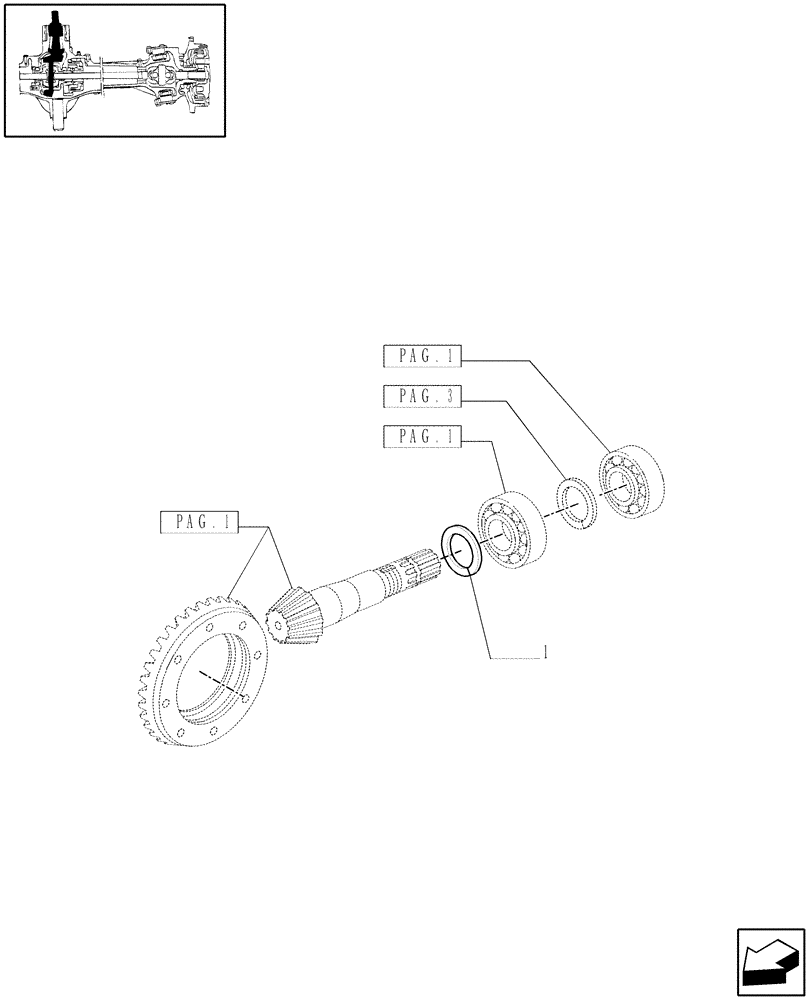

Схема запчастей Case IH MAXXUM 130 - (1.40. 3/06[02A]) - (CL.3) FRONT AXLE WITH DOG CLUTCH AND STEERING SENSOR - ADJUSTING SHIMS - D5954 (VAR.330409) (04) - FRONT AXLE & STEERING
a
1
.
1
p
3
1
g
a
1
a
g
g
a
p
.
p
.
.
p
g

Артикул

Название

Примечание

Количество

1

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

1

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

1

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

1

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

1

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

1

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

1

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

1

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

1

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

1

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

1

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

1

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

1

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.

Выбрано товаров: 13
