Запчасти Case IH MAXXUM 130 (1.40. 3/01) - (CL.3) FRONT AXLE W/MULTI-PLATE DIFF. LOCK & STRG SENSOR - BOX (VAR.330409) (04) - FRONT AXLE & STEERING

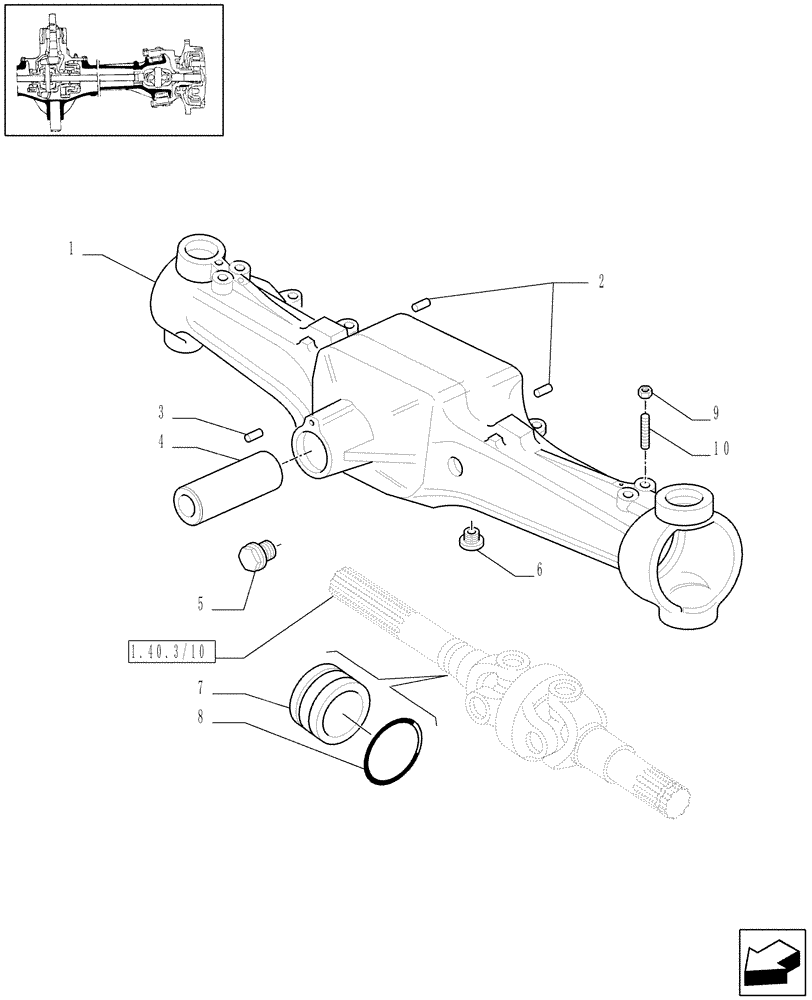

Схема запчастей Case IH MAXXUM 130 - (1.40. 3/01) - (CL.3) FRONT AXLE W/MULTI-PLATE DIFF. LOCK & STRG SENSOR - BOX (VAR.330409) (04) - FRONT AXLE & STEERING
8
7
5
9
1
6
3
4
1.40.3/10
10
2

Артикул

Название

Примечание

Количество

1

87529752

AXLE HOUSING

Incl. 2-4, Serial Range: -C5731

1шт.

1

87633170

AXLE HOUSING

Incl. 2-4, Start Serial: D5731

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

14324413

PLUG,M22 x 1.5

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

87371254

BUSHING,68mm ID x 85mm OD x 45mm L

, Serial Range: -C6449

2шт.

7

84197406

BUSHING

, Start Serial: D6449

2шт.

8

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

9

16101511

NUT,M12 x 1.25, Cl 8

, Start Serial: D5742

2шт.

10

87316865

SET SCREW,M12 x 1.25 x 53mm

, Start Serial: D5742

2шт.

Выбрано товаров: 12
