Запчасти Case IH MAXXUM 130 (1.40.11/14[02]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. LOCK AND BRAKES - BRAKES PIPES (VAR.330425) (04) - FRONT AXLE & STEERING

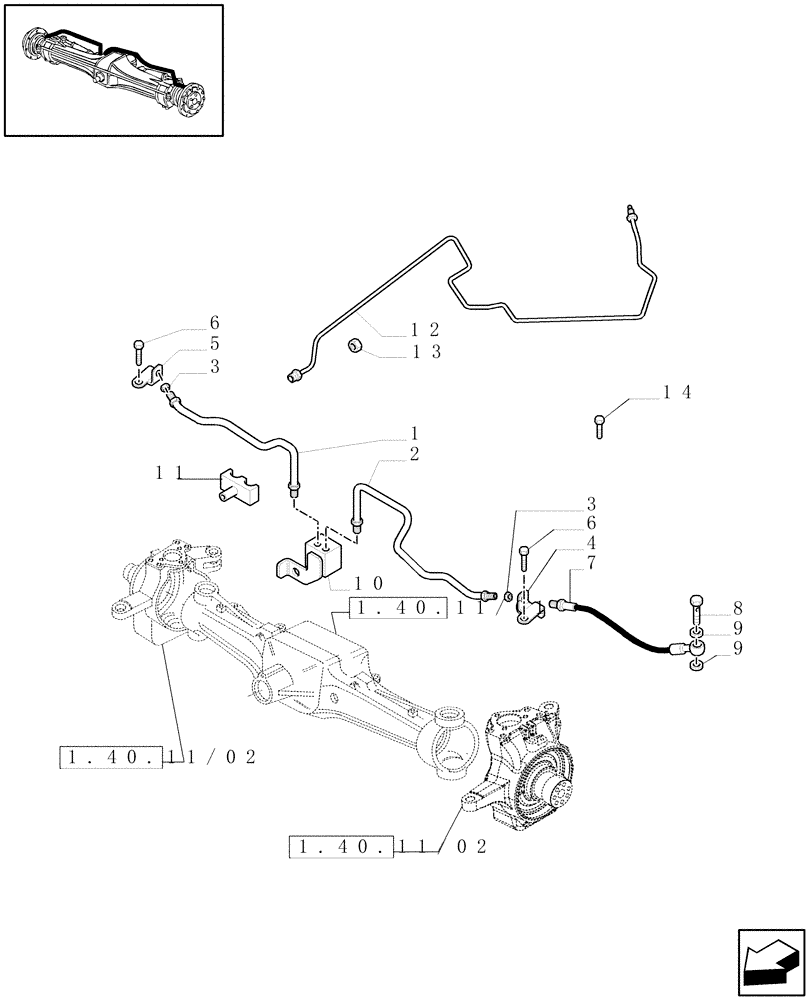

Схема запчастей Case IH MAXXUM 130 - (1.40.11/14[02]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. LOCK AND BRAKES - BRAKES PIPES (VAR.330425) (04) - FRONT AXLE & STEERING
3
12
11
7
8
4
14
9
6
6
3
13
10
1.40.11/01
1.40.11/02
1.40.11/02
1
9
2
5

Артикул

Название

Примечание

Количество

1

87602113

BRAKE LINE

RH

1шт.

2

87602115

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87571108

BRACKET

LH

1шт.

5

87571109

BRACKET

RH

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

295MM

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12x1.25x22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

12MM

4шт.

10

87611523

BRACKET

1шт.

11

14575580

CLAMP BRACKET

3шт.

12

47125560

TUBE

1шт.

13

10726624

THIN NUT,M18 x 1.5, Cl 04

M18x1.5

1шт.

14

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

M8 x 16, 8.8 Full

2шт.

Выбрано товаров: 14
