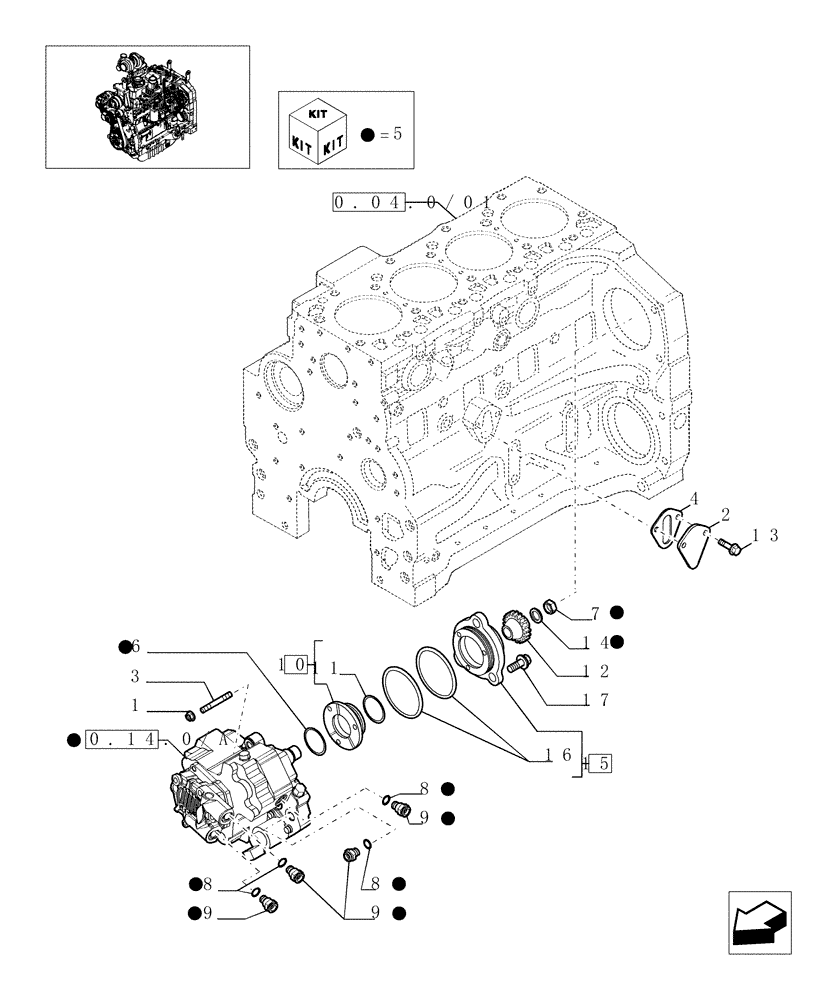

Запчасти Case IH MAXXUM 130 (0.14.0/02[01]) - INJECTION PUMP (STD + VAR.330003-332115-332116) (01) - ENGINE

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

4892831

STUD

M8x1.25x50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

ASSY

1шт.

SEE PL 0.14.0/A

1шт.

84385110R

REMAN-INJECTION PUMP

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140, All TRACTOR (1/07-), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

*

Tier 3, Maxxum 115, Use w/ Eng. P/N 87541995(unboosted) Tier 3 Or 87541994(boosted)

1шт.

*

Tier 3, Maxxum 120, Use w/ Eng. P/N 87525973 Tier 3 Or 87327441 Tier 3, Maxxum 125

1шт.

*

Use w/Eng. P/N 87541993(unboosted) Tier 3 Or 87318895 (boosted) Tier 3

1шт.

*

Maxxum 130, Use w/ Eng. P/N 87525704 (unboosted) Tier 3 Or 87520678 (boosted)

1шт.

*

Tier 3, Maxxum 140, Use w/ Eng. P/N 87525704(unboosted) Tier 3 Or 87520678

1шт.

*

(boosted) Tier 3, N.A. Only

1шт.

5

4898921R

REMAN-INJECTION PUMP

Maxxum 110, Use w/ Eng.P/N 87525979 (unboosted) Tier 3 Or 87327444 (boosted)

1шт.

5

4898921C

CORE-INJECTION PUMP

Return number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

2830564

SPACER

ASSY

1шт.

11

17290581

O-RING,72.62mm ID x 2.34mm Width

1шт.

12

4896138

DRIVEN GEAR,27T

1шт.

13

4899146

SCREW,Hex Flg, M8 x 1.25 x 20

2шт.

14

4890635

SPRING WASHER

1шт.

15

2830598

BEARING COVER

ASSY

1шт.

16

4897111

O-RING,0.139" Thk x 4.719" ID

2шт.

17

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

3шт.
