Запчасти Case IH MAXXUM 130 (1.82.7/02[02]) - 2 ELECTRONIC MID MOUNTED VALVES - PIPES (VAR.330560-333560) (07) - HYDRAULIC SYSTEM

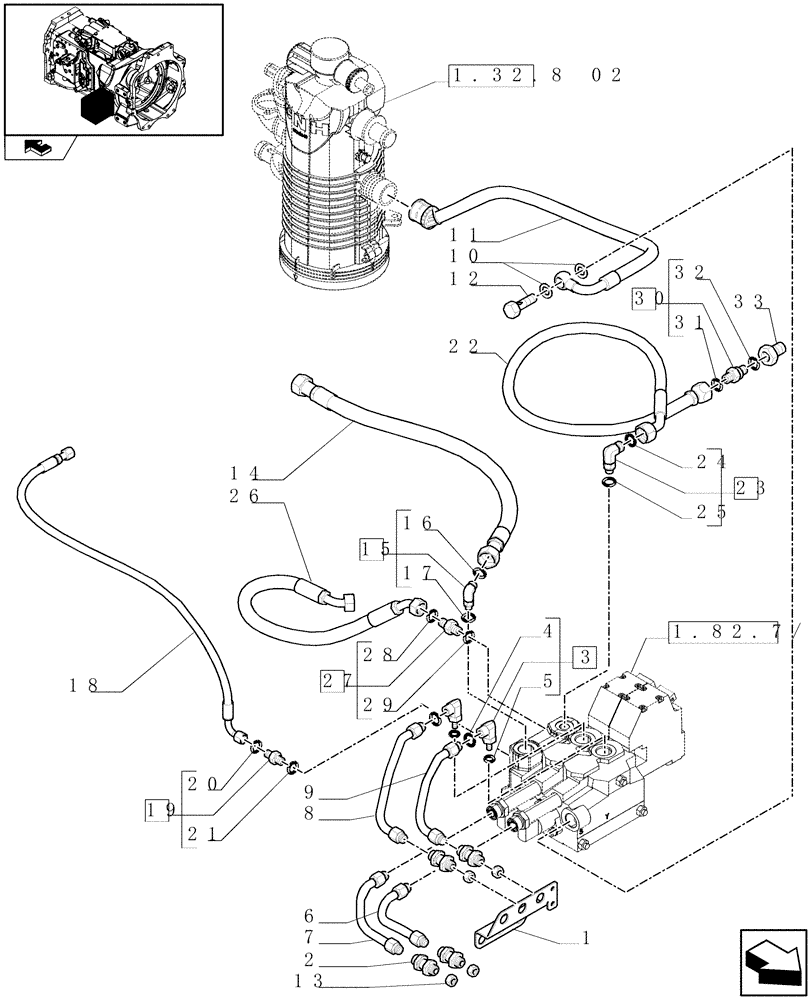

Схема запчастей Case IH MAXXUM 130 - (1.82.7/02[02]) - 2 ELECTRONIC MID MOUNTED VALVES - PIPES (VAR.330560-333560) (07) - HYDRAULIC SYSTEM
20
1
5
33
24
28
9
12
19
25
31
26
27
32
14
29
18
13
home
1.82.7/02 01
1.32.8 02
11
17
2
3
7
4
30
16
10
15
6
23
22
8
21

Артикул

Название

Примечание

Количество

1

84169313

SUPPORT

1шт.

2

82039603

HYD CONNECTOR

4шт.

3

82031421

90 ELBOW,13/16"-16 ORFS x M18 x 1.5 ORB

2.4 x 15.3

2шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

6

84169315

PIPE

1шт.

7

84169317

PIPE

1шт.

8

84169320

PIPE

1шт.

9

84169321

PIPE

1шт.

10

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

11

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

1шт.

12

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

13

87331951

ORIFICE

4шт.

14

84169324

HOSE

240 Bar Supply

1шт.

15

5194728

90 ELBOW

M22 x 1.5 x 40

1шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

17

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

87314897

HOSE,6.35mm ID x 980mm L, SAE 100R2

Load Sense

1шт.

19

5185045

HYD CONNECTOR

1шт.

20

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

21

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

22

87736304

HOSE,950.00mm

Servo Return

1шт.

23

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

1шт.

24

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

25

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

26

84169327

HOSE

Servo Supply

1шт.

27

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

1шт.

28

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

29

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

31

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

33

87582905

ORIFICE

1шт.

Выбрано товаров: 33
