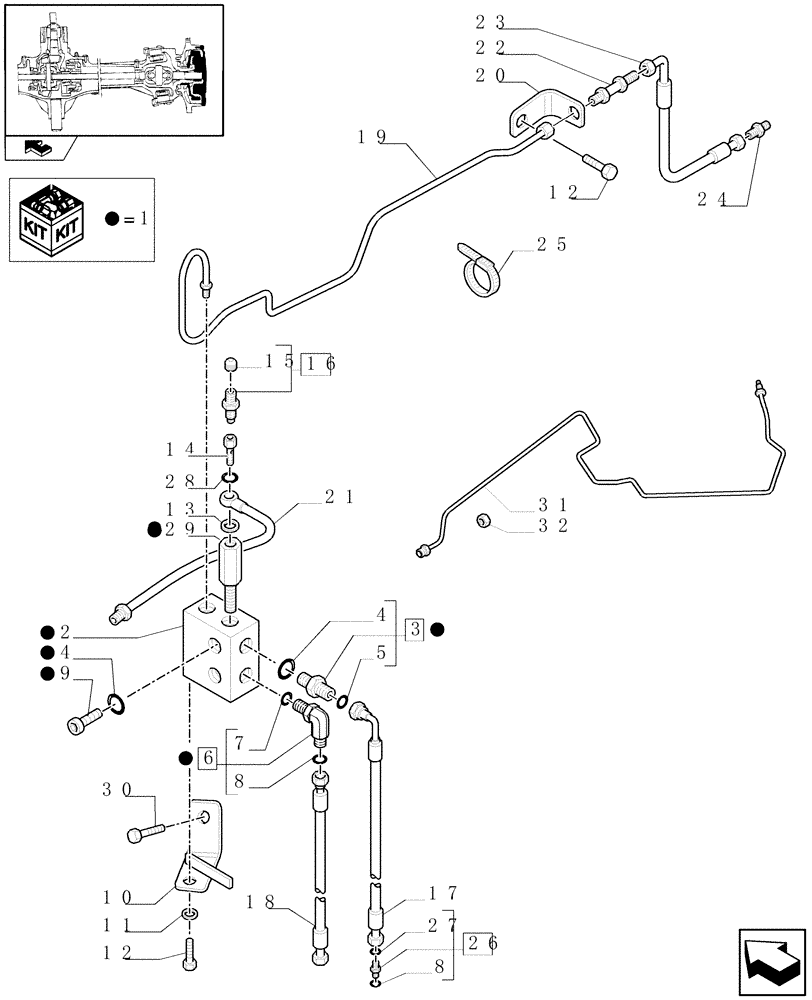

Запчасти Case IH MAXXUM 130 (1.40.2/14[03]) - (CL.3) SUSPENDED FRONT AXLE WITH HYDR. DIF. LOCK, ST. SENSOR AND BRAKES - BRAKE VALVE AND PIPES (VAR.330427) (04) - FRONT AXLE & STEERING

1

47057695

BRAKE VALVE

ASSY

1шт.

2

84174364

VALVE

1шт.

3

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

M16 x 1.5, 11/16-16

1шт.

4

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

5

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

6

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

7

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

10

87314967

BRACKET

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

12

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

13

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

12 x 17 x 5

1шт.

14

82036875

BANJO BOLT

1шт.

15

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

16

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

17

47057670

HOSE

960MM, 11/16"-16

1шт.

18

47057671

HOSE

960MM, 11/16-16

1шт.

19

47057657

TUBE

1шт.

Maxxum 110, Maxxum 120, Maxxum 130

1шт.

19

47057658

TUBE

1шт.

Maxxum 115, Maxxum 125, Maxxum 140

1шт.

20

47057231

BRACKET

1шт.

21

84544440

HYDRAULIC HOSE

1шт.

22

82016624

ADAPTER

1шт.

23

82036030

HOSE,15.88mm ID x 550mm L, SAE 100R2

1шт.

24

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

M18 x 1.5, 1/2-20

1шт.

25

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

26

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

27

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

28

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

D=12

1шт.

29

84153572

VALVE, PRESSURE CONT

1шт.

30

16214624

SCREW,Hex, M14 x 1.5 x 50mm, Cl 8.8

1шт.

31

47125560

TUBE

1шт.

32

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.
