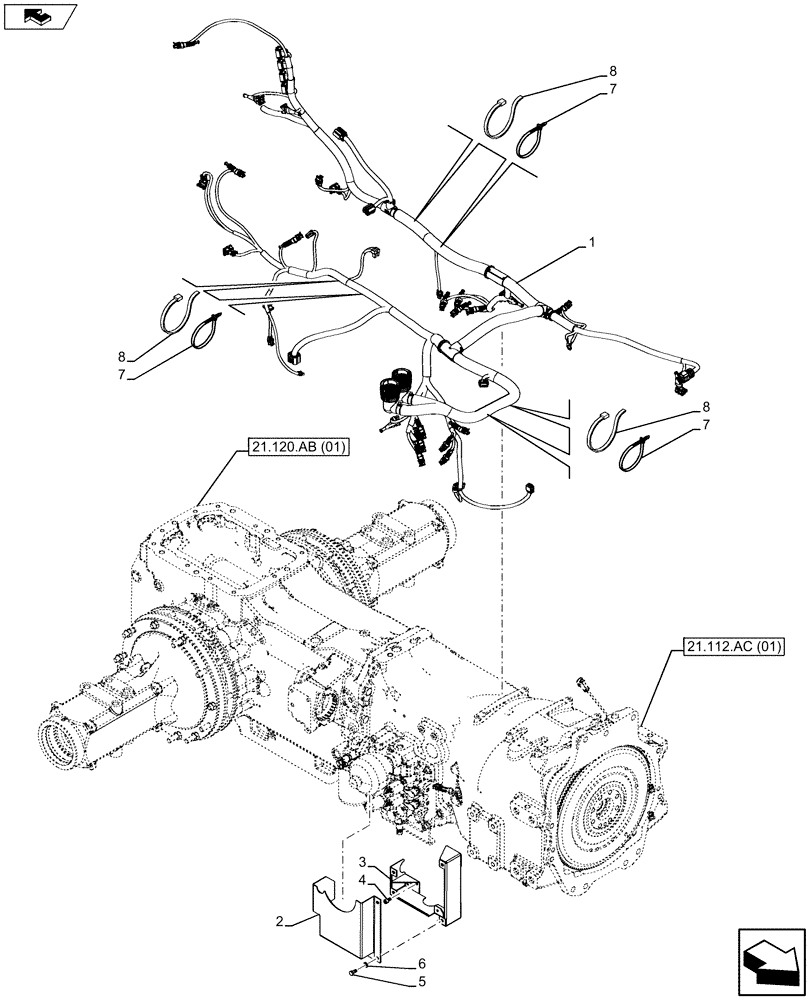

Запчасти Case IH MAXXUM 130 (55.024.AA[01]) - VAR - 743686, 743733 - TRANSMISSION HOUSING, HARNESS - 16X16 W/EHRS (55) - ELECTRICAL SYSTEMS

1

47425217

WIRE HARNESS

Transmission

1шт.

2

47441379

COVER

1шт.

3

47441315

SUPPORT

1шт.

4

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

3шт.

5

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

82013031

CABLE TIE,193mm L

L = 193mm

2шт.

8

82012869

CABLE TIE,300mm L, Nylon, Black

L = 300mm

4шт.
