Запчасти Case IH MAXXUM 130 (41.432.AE[01]) - VAR - 332077, 335077, 391658 - AUTOGUIDANCE, VALVE, MANIFOLD, BRACKET (41) - STEERING

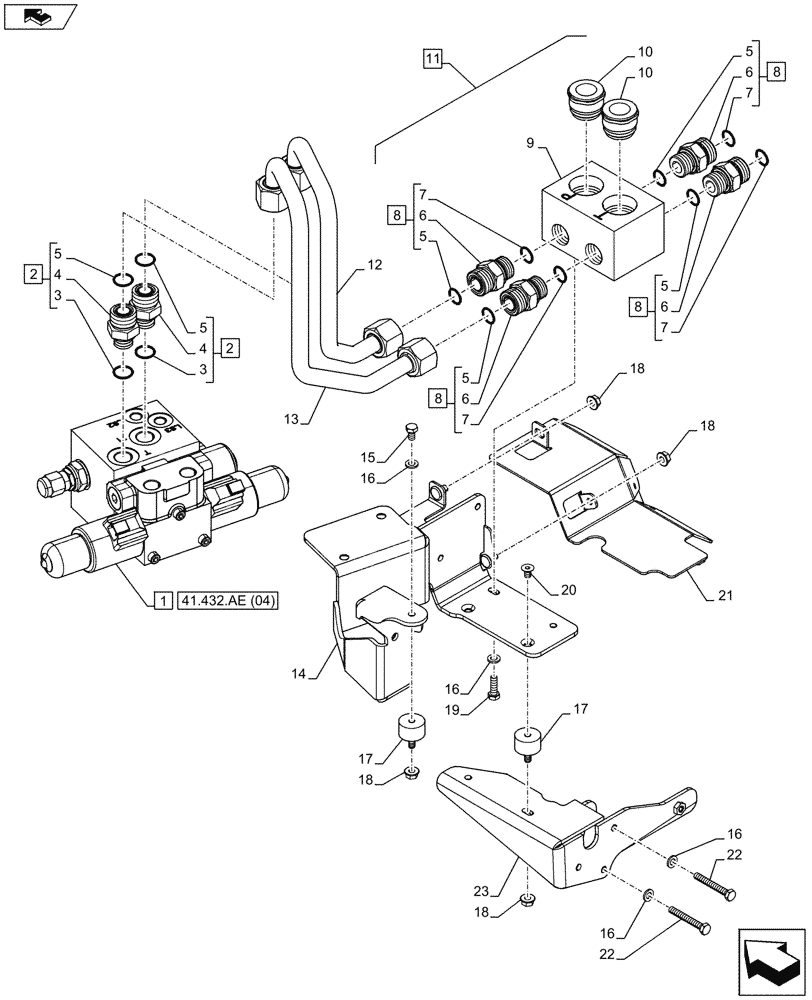

Схема запчастей Case IH MAXXUM 130 - (41.432.AE[01]) - VAR - 332077, 335077, 391658 - AUTOGUIDANCE, VALVE, MANIFOLD, BRACKET (41) - STEERING
9
10
7
4
7
16
22
5
18
16
2
8
16
17
5
6
2
17
3
5
18
5
10
6
11
4
20
1
5
18
15
19
21
5
7
18
8
3
7
6
23
8
13
6
home
14
8
22
12
16
41.432.ae (04)

Артикул

Название

Примечание

Количество

1

47499302

VALVE SECTION

Autoguidance LS Remoted, ASSY

1шт.

2

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

ASSY, Incl 3 (Qty 1), 4, 5 (Qty 1)

2шт.

3

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

4шт.

7

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

4шт.

8

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 5 (Qty 1), 6, 7 (Qty 1)

4шт.

9

47642552

MANIFOLD

1шт.

10

47610636

FITTING

2шт.

11

47704515

MANIFOLD VALVE

ASSY, Incl 5 - 10

1шт.

12

47642558

HYD TUBE

P Line on Valve

1шт.

13

47642560

HYD TUBE

T Line on Valve

1шт.

14

47642545

BRACKET

1шт.

15

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

17

47595760

DAMPER,M6, 25mm OD x 15mm L

3шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

19

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

20

14441131

SCREW,Hex Soc Flat Hd, M6 x 10, 10.9

2шт.

21

47595740

HEAT SHIELD

1шт.

22

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

23

47642548

BRACKET

1шт.

Выбрано товаров: 23
