Запчасти Case IH MAXXUM 130 (41.432.AC[03]) - VAR - 332077, 391658 - AUTOGUIDANCE, VALVE, STEERING LINE, SUSPENDED FRONT AXLE (41) - STEERING

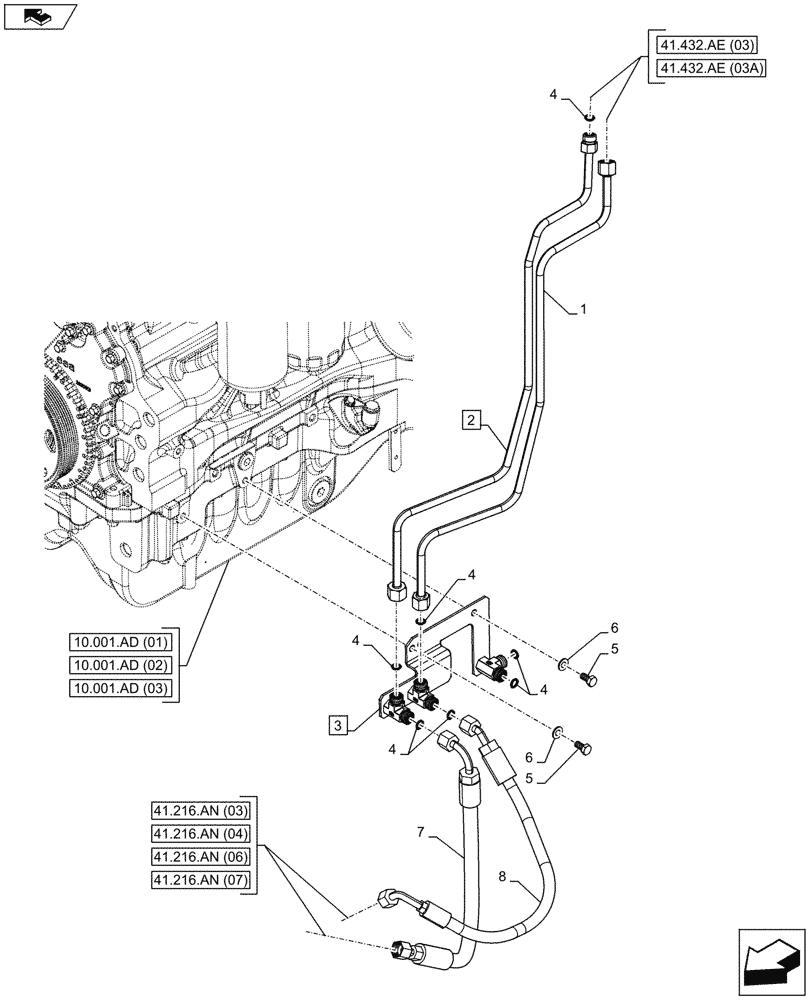

Схема запчастей Case IH MAXXUM 130 - (41.432.AC[03]) - VAR - 332077, 391658 - AUTOGUIDANCE, VALVE, STEERING LINE, SUSPENDED FRONT AXLE (41) - STEERING
41.216.an (03)
4
3
4
7
2
4
5
8
5
6
4
6
4
home
1
10.001.ad (02)
10.001.ad (03)
41.216.an (04)
41.216.an (07)
41.432.ae (03)
10.001.ad (01)
41.216.an (06)
41.432.ae (03a)

Артикул

Название

Примечание

Количество

1

47706069

PIPE

LH, Steering to Suspended Axle

1шт.

2

84188754

HYD TUBE,8 mm ID x 10 mm OD

RH, Steering to Suspended Axle, Incl 4 (Qty 1)

1шт.

3

87325469

SUPPORT ASSY.

Incl 4 (Qty 6)

1шт.

4

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

82036782

HYDRAULIC HOSE,450.00mm

RH, Steering from Pump

1шт.

8

87359495

HYDRAULIC HOSE,520.00mm

LH, Steering from Pump

1шт.

Выбрано товаров: 8
