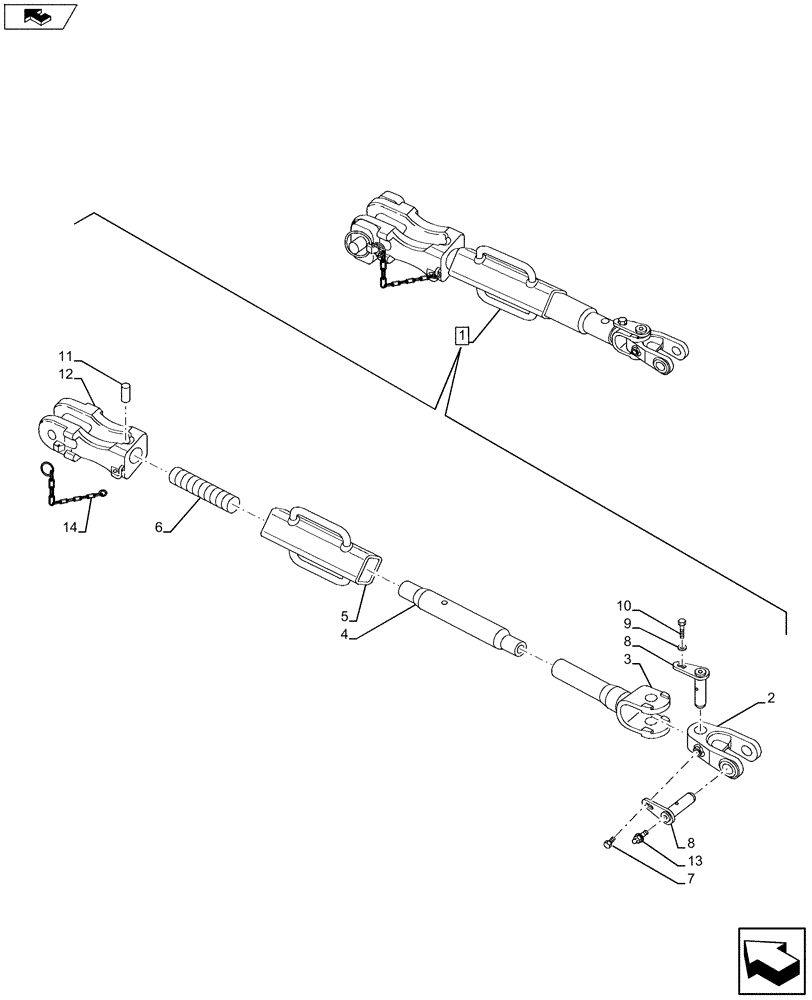

Запчасти Case IH MAXXUM 130 (37.120.AV[02]) - VAR - 390911, 743811 - TOWING EQUIPMENT, TIE-ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47133835

TIE-ROD

RH, ASSY, Incl 2 - 14

1шт.

1

47133836

TIE-ROD

LH, ASSY, Incl 2 - 14

1шт.

2

47130648

YOKE,28mm D x 25mm D

1шт.

3

47130836

TIE-ROD,M33 x 3

1шт.

4

47125893

TUBE,M30 x 3

1шт.

5

5198072

HANDLE

1шт.

6

47125894

THREADED ROD

1шт.

7

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

2шт.

8

47130642

PIN,25mm OD x 92mm L

1шт.

9

14496611

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

10

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

11

14607411

ROLL PIN

1шт.

12

5198070

YOKE,M33 x 3

1шт.

13

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

14

47133914

LINCH PIN

1шт.
