(31.104.AA[05]) - VAR - 332805, 390801 - POWER TAKE-OFF - CONTROLS

Запчасти Case IH MAXXUM 130 (31.104.AA[05]) - VAR - 332805, 390801 - POWER TAKE-OFF - CONTROLS (31) - IMPLEMENT POWER TAKE OFF

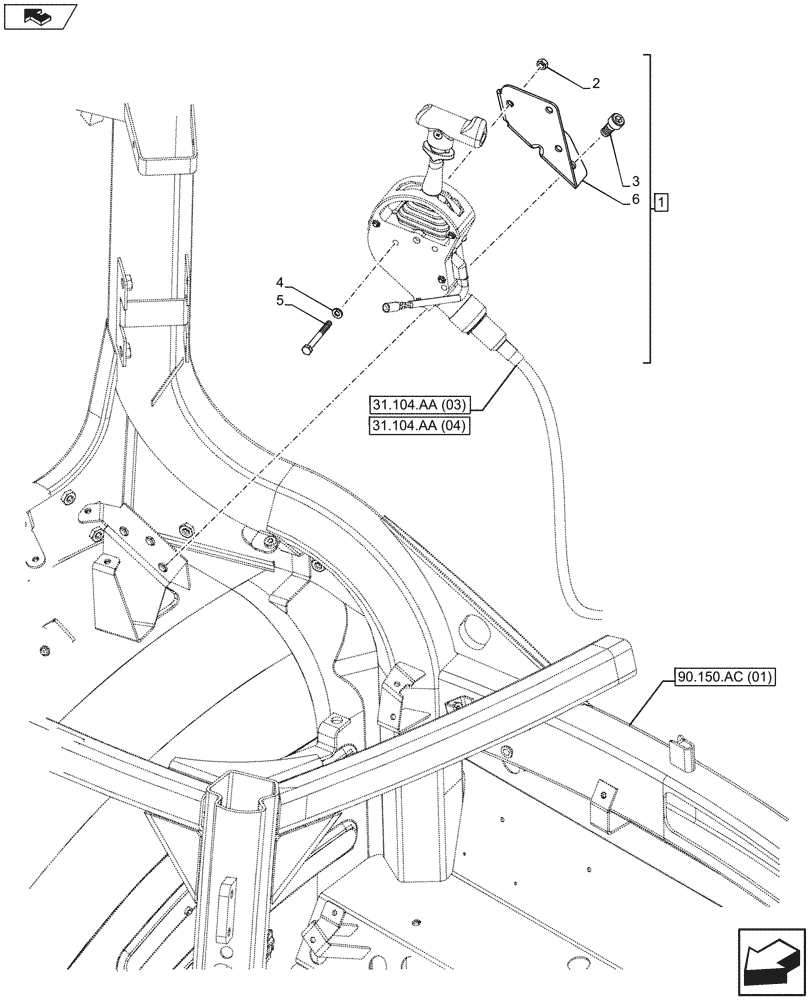

Схема запчастей Case IH MAXXUM 130 - (31.104.AA[05]) - VAR - 332805, 390801 - POWER TAKE-OFF - CONTROLS (31) - IMPLEMENT POWER TAKE OFF
home
2
4
5
6
1
3
31.104.aa (04)
31.104.aa (03)
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87474950

SUPPORT

ASSY, Incl 2 - 6

1шт.

2

15896211

NUT,M6, Cl 8

3шт.

3

14307374

BOLT,Hex Skt, M10 x 1.25 x 20mm, Cl 12.9, Full Thd

3шт.

4

10571579

LOCK WASHER,M6

3шт.

5

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

3шт.

6

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

Выбрано товаров: 6
