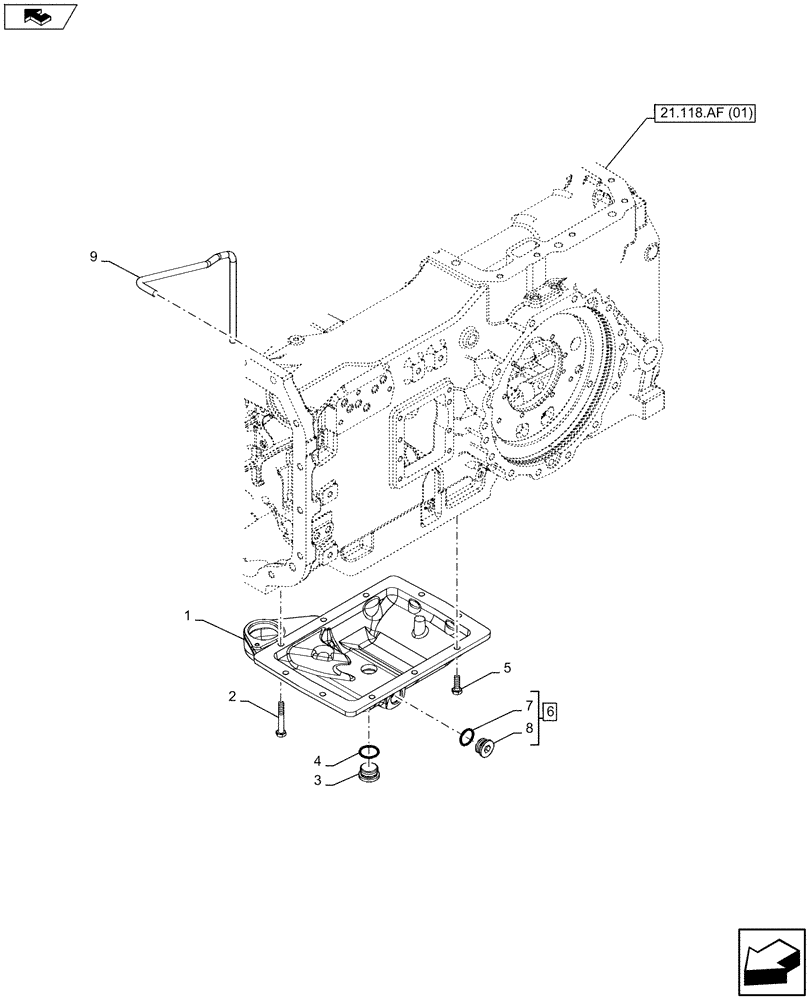

Запчасти Case IH MAXXUM 130 (27.100.AR) - VAR - 390283 - REAR AXLE HOUSING COVER (27) - REAR AXLE SYSTEM

1

47129404

COVER

1шт.

2

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

3

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

4

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

5

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

6

5185747

PLUG,1"13/16-12

ASSY, Incl 7 - 8

1шт.

7

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

9

5198214

HYD TUBE

1шт.
