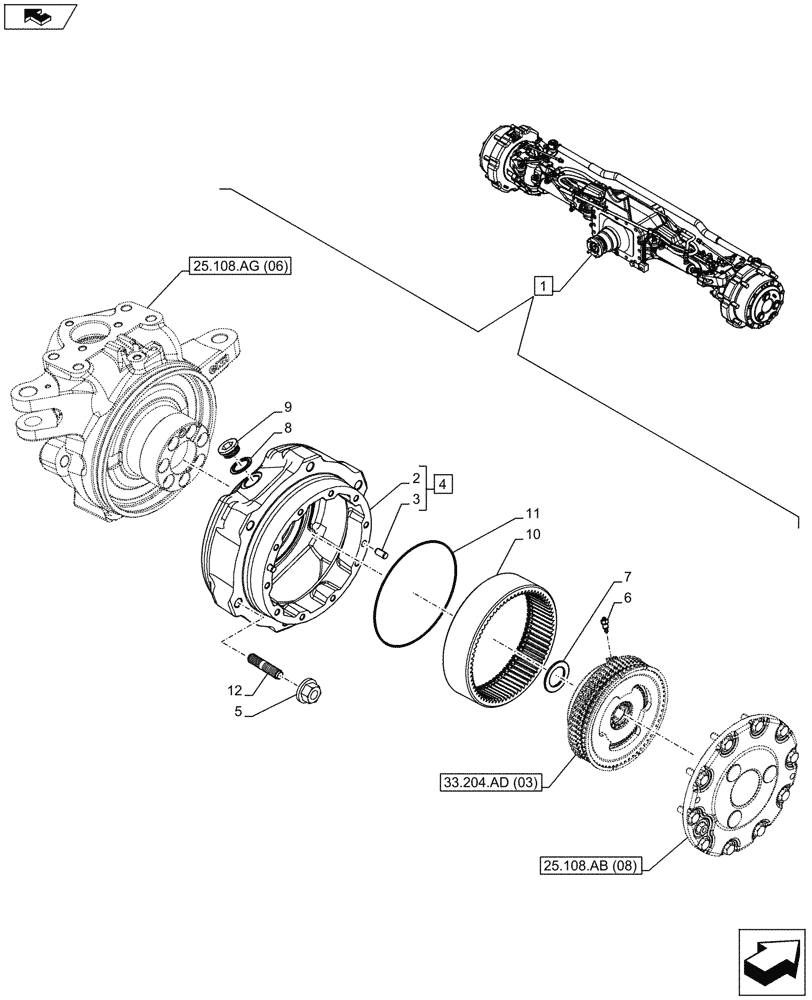

Запчасти Case IH MAXXUM 130 (25.108.AN[06]) - VAR - 330430 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK, STRG SENSOR & BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

87745927

LIVE FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Axle Components in Figure 25.100.AA (06), 25.100.AD (06), 25.102.AC (11), 25.102.AE (02), 25.108.AA (06), 25.108.AB (08), 25.108.AG (06), 33.204.AD (03), 33.204.AD (04), 41.106.AD (02), 41.216.AN (07), 41.216.AV (06), 55.047.AA (06)

1шт.

2

NSS

NOT SOLD SEPARAT

Hub, Incl in 4

2шт.

3

4985063

DOWEL,12mm OD x 20mm L

4шт.

4

47698439

HUB

ASSY, Incl 2 (Qty 1), 3 (Qty 2)

2шт.

5

87678013

NUT,M16 x 1.5

16шт.

6

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

7

87525785

RING

2шт.

8

87380329

SEALING WASHER,28.00mm ID x 38.00mm OD x 1.50mm

2шт.

9

10278340

PLUG,M28 x 1.5 x 11, Brass

2шт.

10

87332016

RING GEAR

2шт.

11

14469481

O-RING,10.984" ID x 11.262" OD x 0.139"

2шт.

12

87618916

STUD

16шт.
