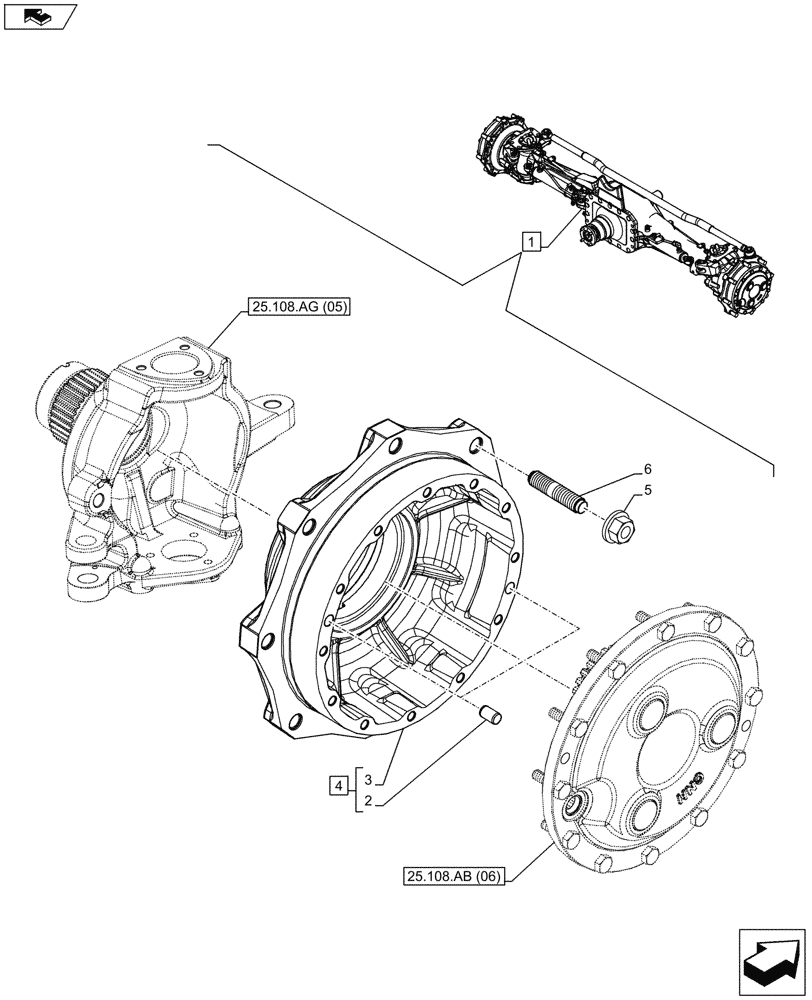

Запчасти Case IH MAXXUM 130 (25.108.AN[05]) - VAR - 330429 - CLASS 4, SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

87745936

LIVE FRONT AXLE

ASSY, Incl 2 - 6

1шт.

See also Axle Components in Figure 25.100.AA (05), 25.100.AD (05), 25.102.AC (11), 25.102.AE (02), 25.108.AA (05), 25.108.AB (06), 25.108.AB (07), 25.108.AG (05), 41.106.AD (02), 41.216.AN (06), 41.216.AV (05), 55.047.AA (05)

1шт.

2

4985063

DOWEL,12mm OD x 20mm L

4шт.

3

NSS

NOT SOLD SEPARAT

Hub, Incl in 4

2шт.

4

84270400

HUB

ASSY, Incl 2 (Qty 2), 3 (Qty 1)

2шт.

5

87678013

NUT,M16 x 1.5

16шт.

6

87618916

STUD

16шт.
