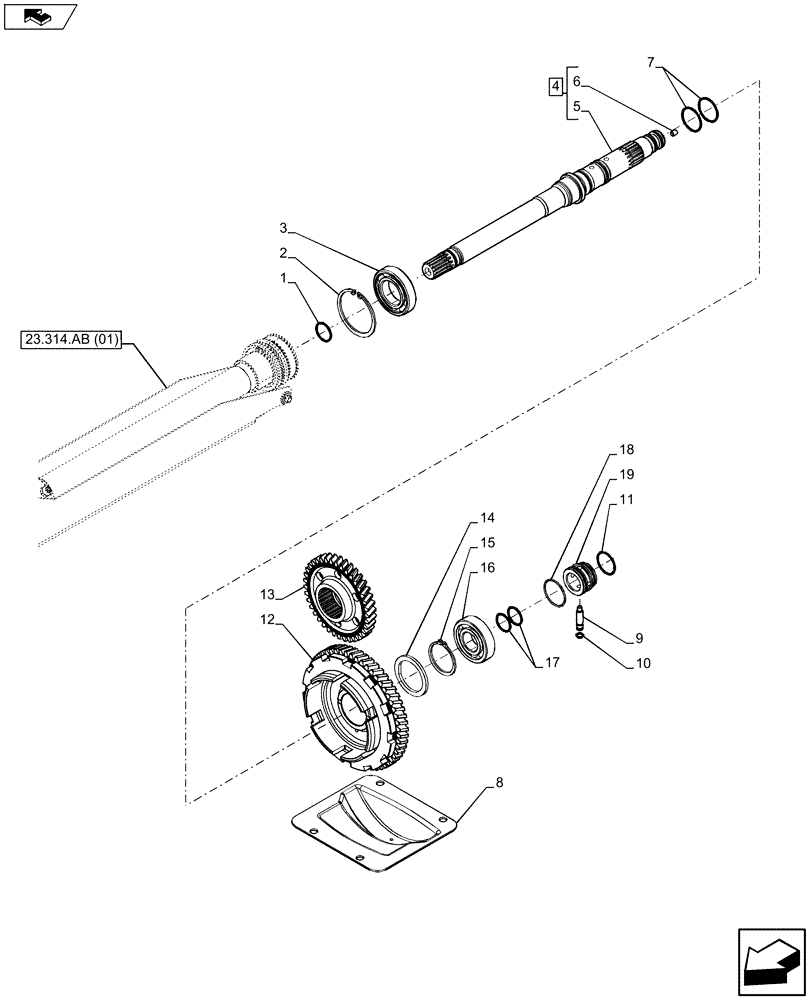

Запчасти Case IH MAXXUM 130 (23.314.AB[02]) - VAR - 332351, 391223 - DRIVING GEAR, SHAFT & GEAR (23) - FOUR WHEEL DRIVE SYSTEM

1

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

2

11062176

CIRCLIP,M85, Int

1шт.

3

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

5198208

SHAFT

ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Incl in 4

1шт.

6

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

7

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

8

47415918

COVER

ASSY, Incl 9 - 10

1шт.

9

47126672

PIN,10.5mm OD x 46.6mm L

1шт.

10

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

11

14458880

O-RING,40.94mm ID x 2.62" Width

1шт.

12

84575068

GEAR

4WD Driven

1шт.

13

5193853

GEAR,37T

1шт.

14

5193862

THRUST WASHER

1шт.

15

5193966

CIRCLIP

1шт.

16

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

17

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

18

14459180

O-RING,45.69mm ID x 2.62"

1шт.

19

47126668

MANIFOLD

1шт.
