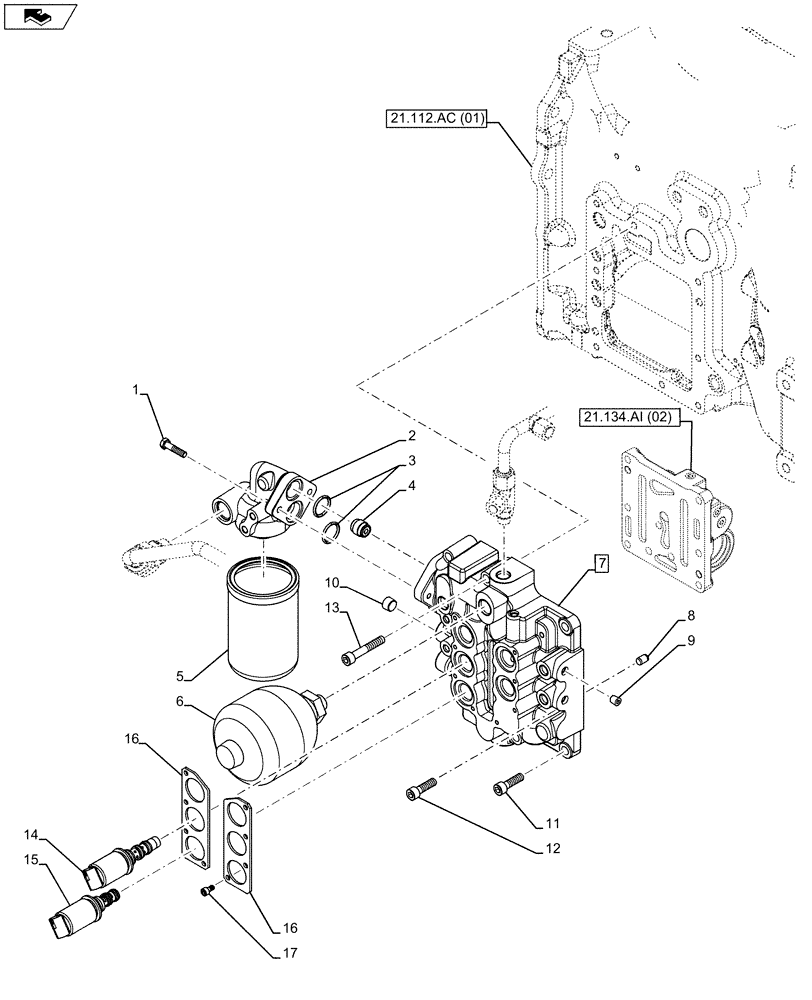

Запчасти Case IH MAXXUM 130 (21.134.AI[01]) - VAR - 390283 - GEARBOX, SOLENOID VALVE (21) - TRANSMISSION

1

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

2

84423350

FILTER HEAD

1шт.

3

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

4

87482254

CHECK VALVE

1шт.

5

87588814

HYDRAULIC OIL FILTER,151mm L

1шт.

6

87314179

ACCUMULATOR,0.75L

1шт.

7

84423353

HYDRAULIC MANIFOLD

ASSY, Incl 8 - 10

1шт.

8

10839710

DOWEL,M10 x 15.00mm

4шт.

9

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

7шт.

10

10269601

PLUG,M16 x 1.5

1шт.

11

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

12

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

13

14308121

HEX SOC SCREW,M10 x 1.25 x 60mm, Cl 8.8

3шт.

14

87739558

SOLENOID VALVE,14W

4шт.

14

87739558R

REMAN-SOLENOID

4шт.

14

87739558C

CORE-SOLENOID

Return Number

4шт.

15

87472229

CARTRIDGE

1шт.

16

87364740

MOUNTING PLATE

2шт.

17

14305120

SCREW,Hex Soc Hd, M6 x 12, 8.8

8шт.
