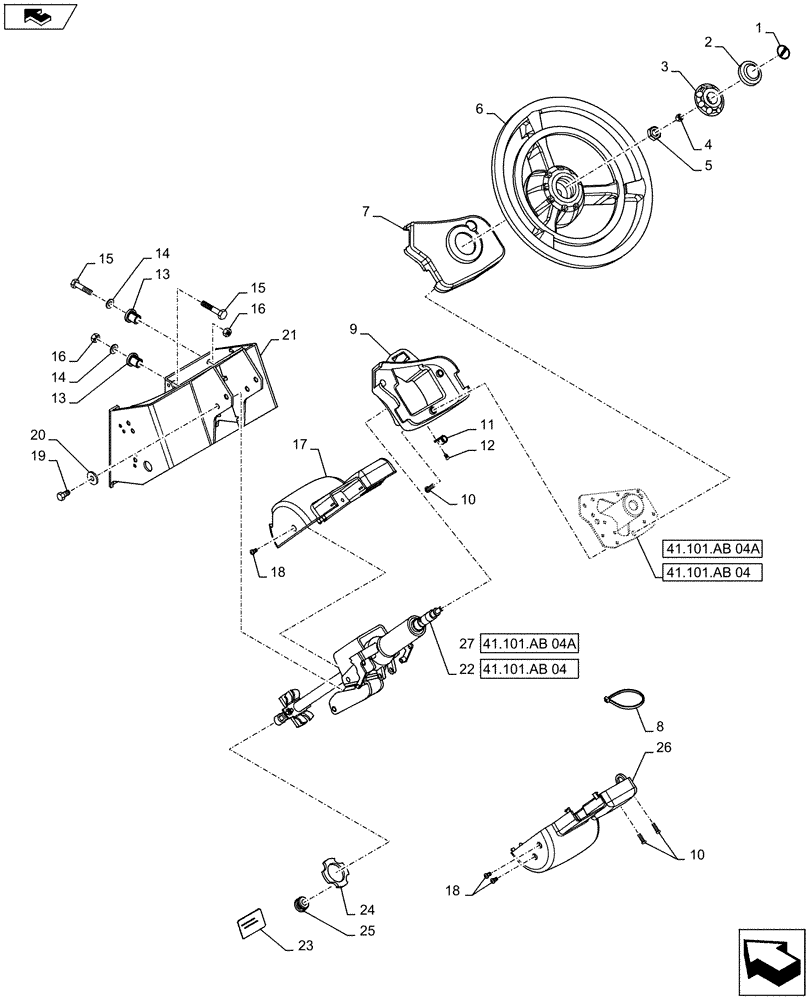

Запчасти Case IH MAXXUM 125 (41.101.AB[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (41) - STEERING

1

86401707

EMBLEM

1шт.

2

87302798

CAP,54mm OD, Black

1шт.

3

87302160

KNOB

1шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

5

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

6

9821708

STEERING WHEEL

1шт.

7

87568061

COVER

1шт.

8

14560287

CABLE TIE,207.00mm L

1шт.

9

87568062

COVER

1шт.

10

83990793

SELF-TAP SCREW,Oval Cross, #10-16 x 1 1/4"

5шт.

11

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

12

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

13

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

15

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

16

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

17

82036446

COVER

1шт.

18

84187819

SCREW,Torx Flat Hd, M6 x 12mm, Cl 5.8

6шт.

19

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

20

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

21

87579189

SUPPORT

1шт.

22

84255779

STEERING COLUMN,Tilting, Telescoping

ASSY, Serial Range: -C9023

1шт.

23

82004409

DECAL

1шт.

24

81873344

RUBBER INSULATOR

1шт.

25

82009429

ISOLATOR

4шт.

26

82036756

COVER

1шт.

27

47383940

STEERING COLUMN,Tilting, Telescoping

ASSY, Start Serial: D9023

1шт.
