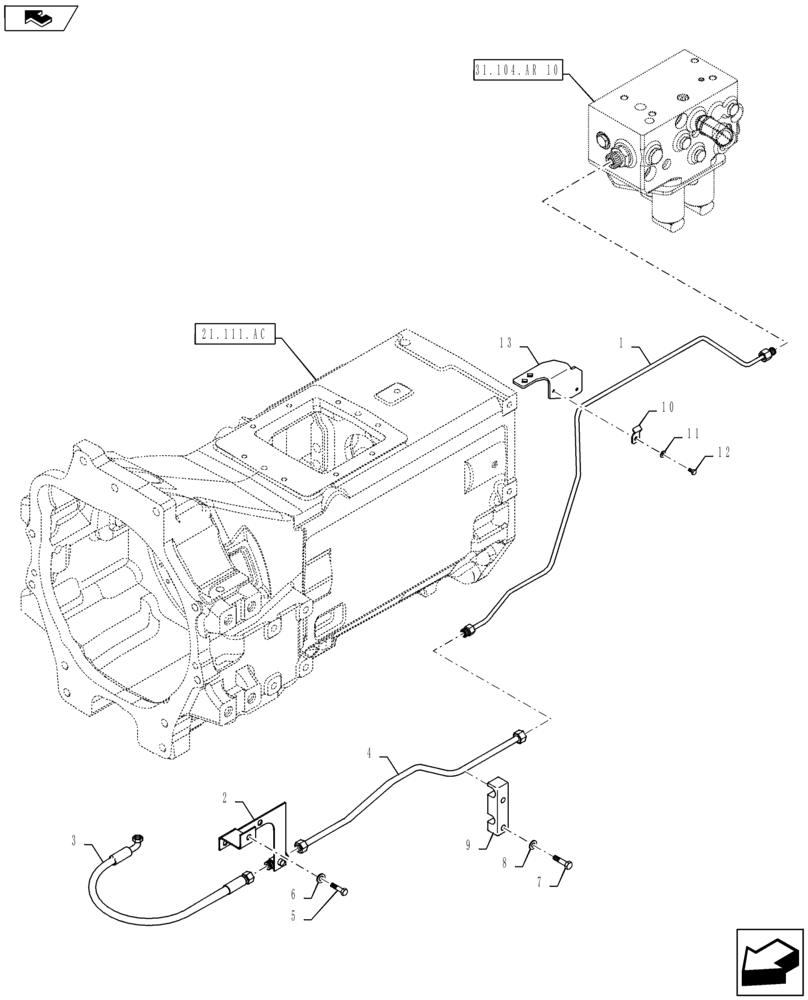

Запчасти Case IH MAXXUM 125 (25.102.AT[01]) - CL.3 - STD FRONT AXLE - DIFFERENTIAL LOCK LINES (25) - FRONT AXLE SYSTEM

1

84473416

TUBE

1шт.

2

87317792

SUPPORT

1шт.

3

87352542

HOSE,550.00mm

1шт.

4

87540060

HYD TUBE,8 mm ID x 10 mm OD x 604, 46 mm L

Maxxum 115, 125, 140

1шт.

4

87540061

TUBE,8 mm ID x 10 mm OD x 364, 89 mm L

Maxxum 110, 120, 130

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

8

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

9

82029228

CLAMP,2 Hoses

1шт.

10

84332672

BRACKET

1шт.

11

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

12

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

13

84426961

BRACKET

1шт.
