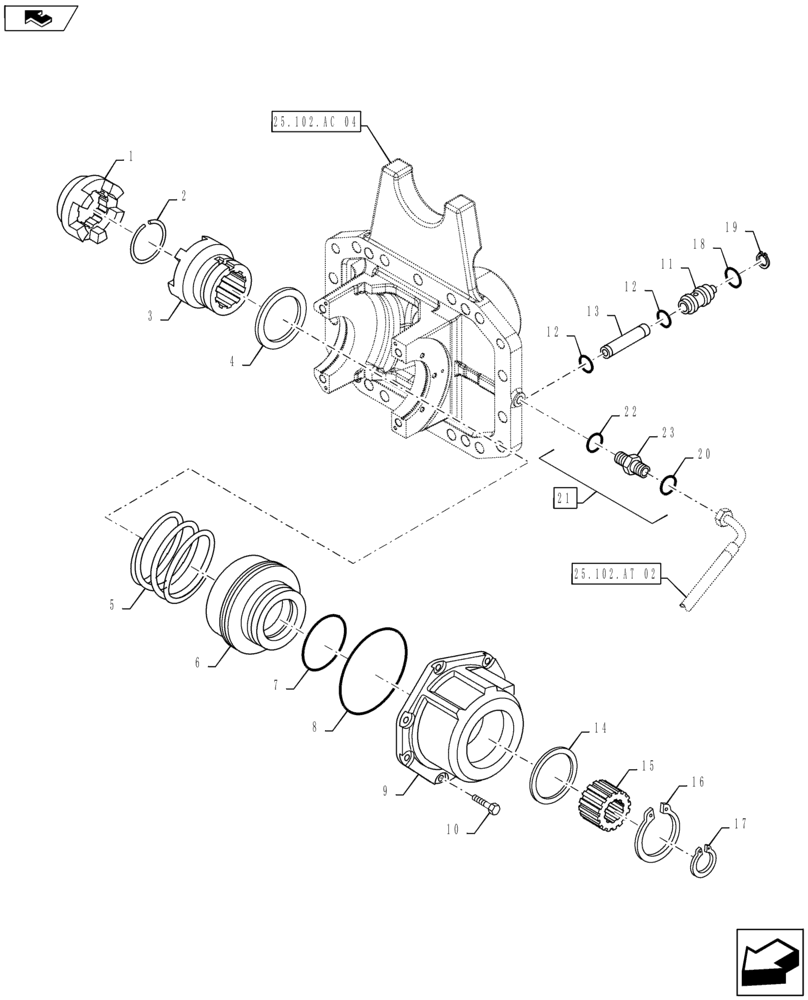

Запчасти Case IH MAXXUM 125 (25.102.AS[03]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

1

5153349

SLEEVE

1шт.

2

5153351

SNAP RING,55.5mm ID

1шт.

3

5153350

SLEEVE,22T

1шт.

4

5153392

THRUST WASHER,72.5mm ID x 90mm OD x 2.8mm Thk

1шт.

5

5154040

SPRING

1шт.

6

5155169

PISTON

1шт.

7

14465781

O-RING,3.609" ID x 3.887" OD x 0.139"

1шт.

8

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

1шт.

9

5155167

HOUSING

1шт.

10

14233824

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8

6шт.

11

5196677

PLUG

1шт.

12

81844608

O-RING,11.10mm ID x 1.78mm

2шт.

13

5197790

TUBE

1шт.

14

5153391

THRUST WASHER,67mm ID x 83mm OD x 3mm Thk

1шт.

15

5153390

HUB

1шт.

16

11070376

SNAP RING,M70, Ext

1шт.

17

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

18

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

19

84144333

SNAP RING

1шт.

20

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Incl 20, 22, 23

1шт.

22

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

23

NSS

NOT SOLD SEPARAT

Connector Body, Incl in 21

1шт.
