(25.102.AC[04]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - DIFFERENTIAL CARRIER

Запчасти Case IH MAXXUM 125 (25.102.AC[04]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM

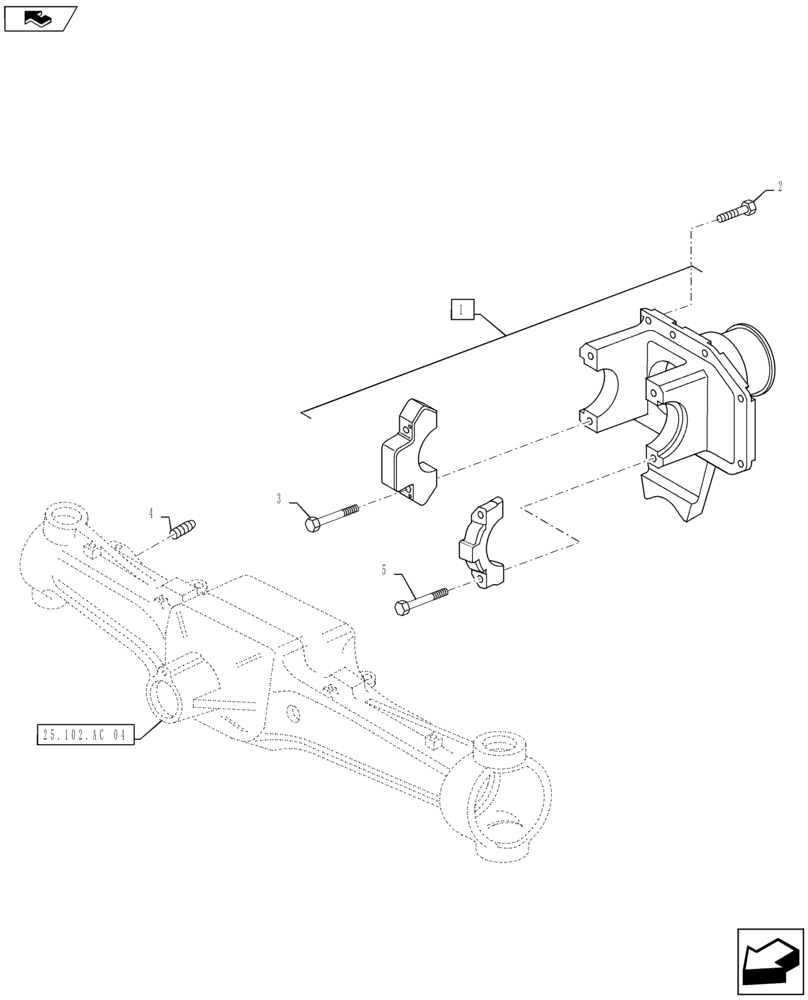

Схема запчастей Case IH MAXXUM 125 - (25.102.AC[04]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - DIFFERENTIAL CARRIER (25) - FRONT AXLE SYSTEM
2
25.102.ac 04
home
4
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87492294

SUPPORT

Incl 3, 5

1шт.

2

14313774

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 12.9, Full Thd

4шт.

3

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

4

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

5

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

2шт.
