Запчасти Case IH MAXXUM 120 (1.94.0/07[01A]) - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - D5936 - C9018 (10) - OPERATORS PLATFORM/CAB

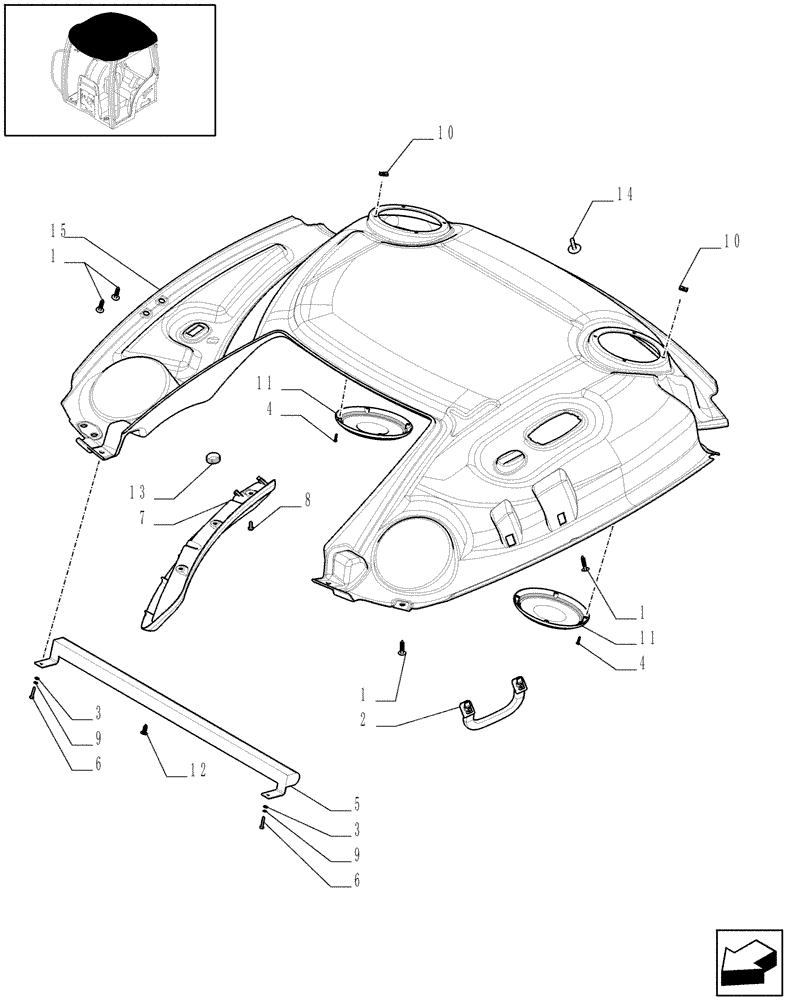

Схема запчастей Case IH MAXXUM 120 - (1.94.0/07[01A]) - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - D5936 - C9018 (10) - OPERATORS PLATFORM/CAB
4
9
3
6
1
15
1
10
4
3
5
11
12
6
2
1
11
10
14
9
8
13
7

Артикул

Название

Примечание

Количество

1

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

2

82035644

HANDLE

, Serial Range: -C6454

1шт.

2

84227380

HANDLE

, Start Serial: D6454

1шт.

3

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

84187829

SCREW,Torx Pan Hd, M5 x 25mm, Cl 4.8

2шт.

7

82033809

CONSOLE

, Serial Range: -C6235

1шт.

7

82038590

CONSOLE

, Serial Range: -C6235

1шт.

Only with Telescopic/Heated/Remote adjust Mirrors with High Visibility Panel, VAR.330827, Multicontroller/Pro Versions only

1шт.

7

87673408

CONSOLE

, Start Serial: D6235

1шт.

7

87673403

CONSOLE

, Start Serial: D6235

1шт.

Only with Telescopic/Heated/Remote adjust Mirrors with High Visibility Panel, VAR.330827, Multicontroller/Pro Versions only

1шт.

8

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

3шт.

9

12605274

WASHER

2шт.

10

81872135

NUT,Retaining, M4.20

8шт.

11

82022875

GRILLE,185mm OD

Speaker

2шт.

12

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

13

87725990

PLUG

, Serial Range: -C6338

1шт.

14

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

15

87725998

ROOF LINING

, Serial Range: -C6338

1шт.

15

87521214

ROOF LINING

, Start Serial: D6338

1шт.

Выбрано товаров: 22
