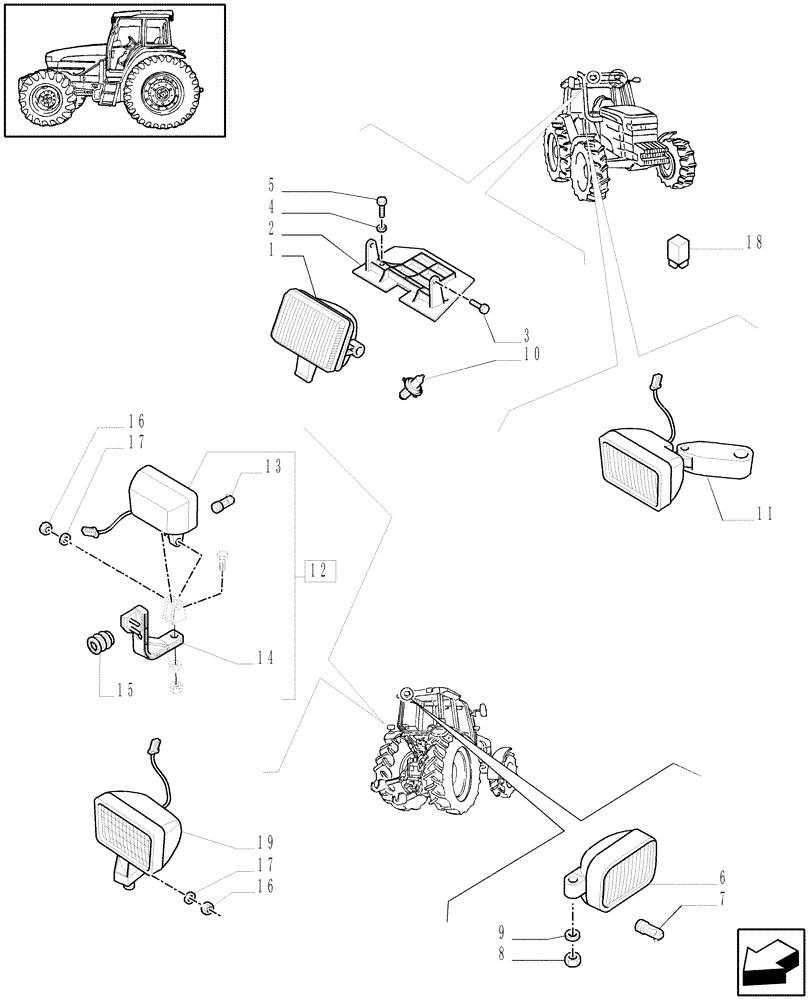

Запчасти Case IH MAXXUM 120 (1.91.3/02) - WORKLAMPS (VAR.330786) (10) - OPERATORS PLATFORM/CAB

1

82031073

WORK LAMP,Halogen, 12V, 50W, Clear

RH HEADLAMP RH

1шт.

1

82031074

WORK LAMP

LH HEADLAMP LH

1шт.

2

82031076

SUPPORT

RH

1шт.

2

82031077

MOUNTING PLATE

LH

1шт.

3

15644001

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

4шт.

4

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

5

84193289

SCREW,Torx, Pan HD, M6 x 14mm, Cl 4.8

4шт.

6

87313318

WORK LAMP,Halogen, 12V, 55W, Clear

RH, Incl. 7

1шт.

6

87313317

WORK LAMP

LH, Incl. 7

1шт.

7

14151590

BULB,H3, 12V, 55W

2шт.

8

14048221

NUT,M8 x 1.25, Cl 10

2шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

44995162

BULB,T-3 1/4, 12.8V, 50W

12V

2шт.

11

87313315

WORK LAMP,Halogen, 12V, 55W, Clear

WORKLAMP ON "C" PILLAR LH

1шт.

11

87313316

WORKLAMPS ON "C" PIL

RH

1шт.

12

87314742

WORK LAMP

, Serial Range: -C5850

2шт.

13

14151590

BULB,H3, 12V, 55W

, Serial Range: -C5850

1шт.

14

82030753

BRACKET

, Serial Range: -C5850

1шт.

15

82029349

BOOT

, Serial Range: -C5850

1шт.

16

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

17

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

18

82023238

RELAY,12V, 20A

1шт.

19

87733060

WORK LAMP,Halogen, 12V, 55W, Clear

, Start Serial: D5850

1шт.
