Запчасти Case IH MAXXUM 120 (1.82.7/29[01A]) - NAR LOADER READY WITH MECH. JOYSTICK, 2 ELEM. MID MOUNT VALVES AND EDC - PIPES - D6432 (VAR.335820 / 743746) (07) - HYDRAULIC SYSTEM

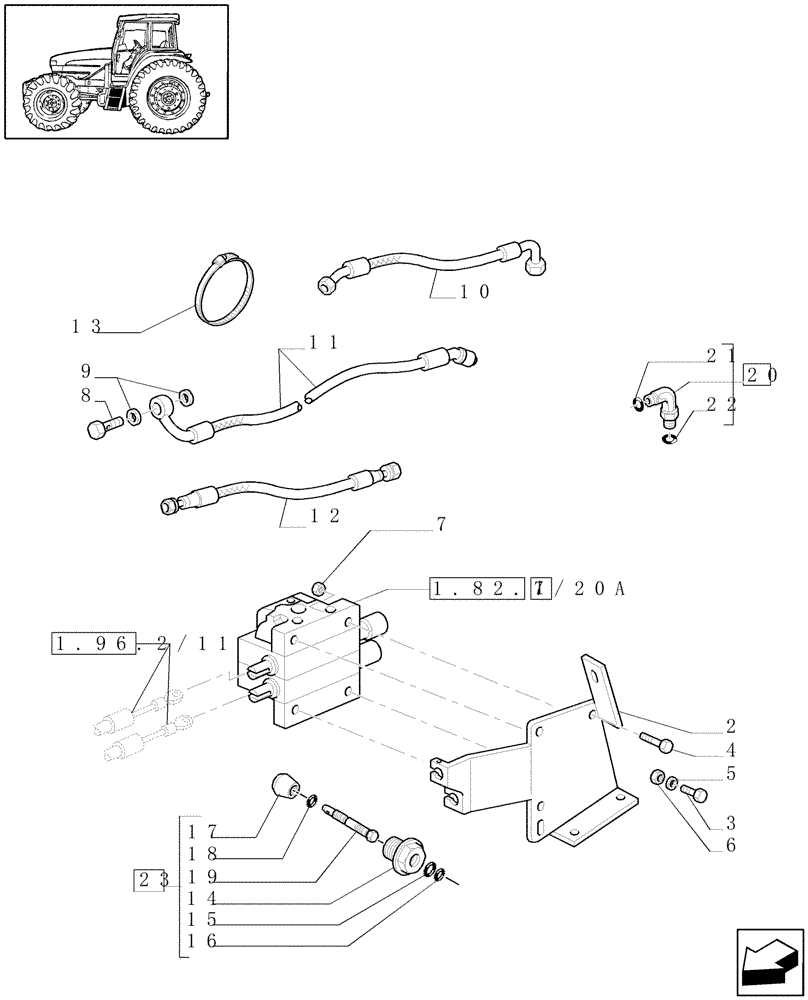

Схема запчастей Case IH MAXXUM 120 - (1.82.7/29[01A]) - NAR LOADER READY WITH MECH. JOYSTICK, 2 ELEM. MID MOUNT VALVES AND EDC - PIPES - D6432 (VAR.335820 / 743746) (07) - HYDRAULIC SYSTEM
1.96.2/11
18
6
10
12
1
16
15
20
17
13
9
3
7
4
8
5
1.82.7/20a
11
14
22
19
21
2
23

Артикул

Название

Примечание

Количество

1

87324660

CONTROL VALVE

ASSY

1шт.

2

87568641

BRACKET

1шт.

3

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10 x 35

2шт.

4

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

43362

NUT,M8 x 1.25, Cl 10

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

10

87708268

HOSE

MMV Power Beyond, 2050MM

1шт.

11

84202624

HOSE ASSY.

Return

1шт.

12

84202623

HYDRAULIC HOSE

Feed

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

87370071

BODY

M27x2

1шт.

15

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1.78 x 6.75

1шт.

16

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

17

47135841

PLUG

1шт.

18

11087876

CIRCLIP,M7

1шт.

19

87363956

SPECIAL BOLT

1шт.

20

5194728

90 ELBOW

M22 x 1.5

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

23

87372883

SPOOL

ASSY

1шт.

Выбрано товаров: 24
