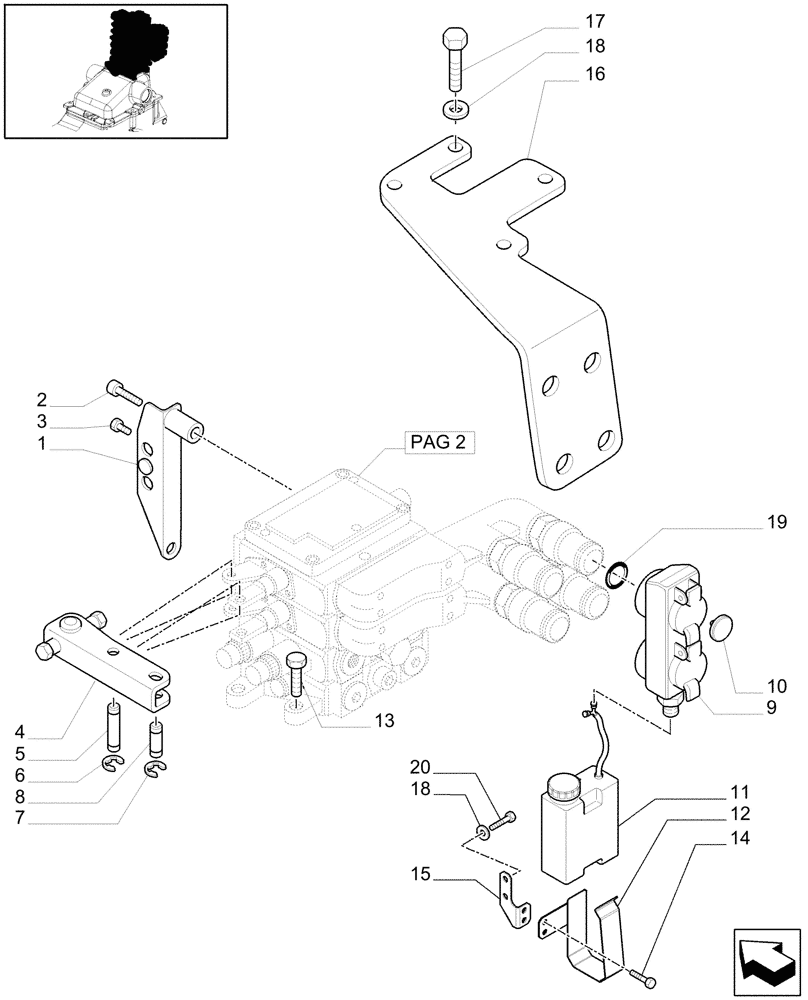

Запчасти Case IH MAXXUM 120 (1.82.7/02[01A]) - 2 REAR MECHANICAL CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC - C6788 (VAR.390729-390841 / 743744) (07) - HYDRAULIC SYSTEM

1

87390554

STOP

1шт.

2

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

1шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

87358094

LEVER

2шт.

5

5193177

PIN,6mm OD x 29.48mm L

2шт.

6

11063971

SPRING CLIP,M6

D=6

4шт.

7

9990741

SNAP RING,M8, Ext

4шт.

8

5113008

PIN,8mm OD x 26mm L

D=8 x 26

2шт.

9

84293791

DUST CAP

Incl 10, 19, Serial Range: -C7117

2шт.

9

84319182

DUST CAP

Incl 10, 19, Start Serial: D7117

2шт.

10

82029895

DISC,20mm D, Black

Black

4шт.

11

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

11

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

12

84312030

SUPPORT

1шт.

13

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

14

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

15

84311423

SUPPORT

1шт.

16

87499713

BRACKET

1шт.

17

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

18

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

19

14454580

O-RING,34.65mm ID x 1.78mm

2шт.

20

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
