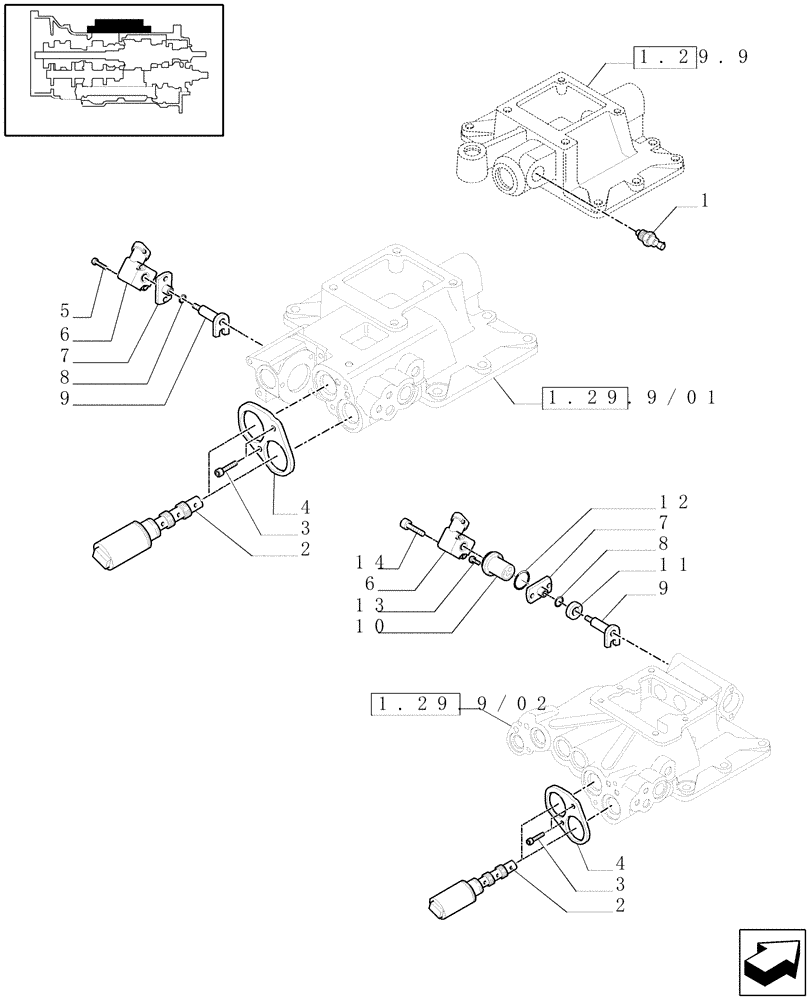

Запчасти Case IH MAXXUM 120 (1.75.0[09]) - REVERSER AND SPEED GEARSHIFT MECHANISM SWITCHES AND SOLENOID VALVES (06) - ELECTRICAL SYSTEMS

1

87369252

SWITCH ASSY

Mechanical Shuttle

1шт.

Shift Rail Position, Red (Value Version only)

1шт.

2

5196873

SOLENOID VALVE

132MM

1шт.

Qty. 2 for 24x24 Transmission; Qty. 4 for 16x16 Transmission

1шт.

Shuttle Synchro Control

1шт.

3

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

Qty. 2 for 24x24 Transmission; Qty. 4 for 16x16 Transmission

1шт.

4

82022595

BRACKET

1шт.

Qty. 1 for 24x24 Transmission; Qty. 2 for 16x16 Transmission

1шт.

5

13275001

SCREW,Cross Pan Hd, M5 x 40mm

2шт.

6

87559692

POTENTIOMETER,4000 Ohm, 13.5 VDC

, Serial Range: -C5735

1шт.

Qty. 1 for 24x24 Transmission; Qty. 2 for 16x16 Transmission

1шт.

Rail Shuttle Position & Rail 4/5 Position (16x16 Transm. only)

1шт.

6

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

, Start Serial: D5735

1шт.

Qty. 1 for 24x24 Transmission; Qty. 2 for 16x16 Transmission

1шт.

Rail Shuttle Position & Rail 4/5 Position (16x16 Transm. only)

1шт.

7

5178541

PLATE

1шт.

Qty. 1 for 24x24 Transmission; Qty. 2 for 16x16 Transmission

1шт.

8

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

Qty. 1 for 24x24 Transmission; Qty. 2 for 16x16 Transmission

1шт.

9

5178335

SHAFT,12mm OD x 48.5mm L

1шт.

Qty. 1 for 24x24 Transmission; Qty. 2 for 16x16 Transmission

1шт.

10

47135914

HOUSING

2шт.

11

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

2шт.

12

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

13

13274411

SCREW,Pozidriv Pan Hd, M5 x 20mm

2шт.

14

13275221

SCREW,Pozdriv Pan Hd, M5 x 50mm, Cl 8.8

4шт.
