Запчасти Case IH MAXXUM 120 (1.42.0/02[01]) - POWER STEERING DELIVERY AND RETURN PIPES FOR 16X16 AND 17X16 TRANSMISSION - C6562 (04) - FRONT AXLE & STEERING

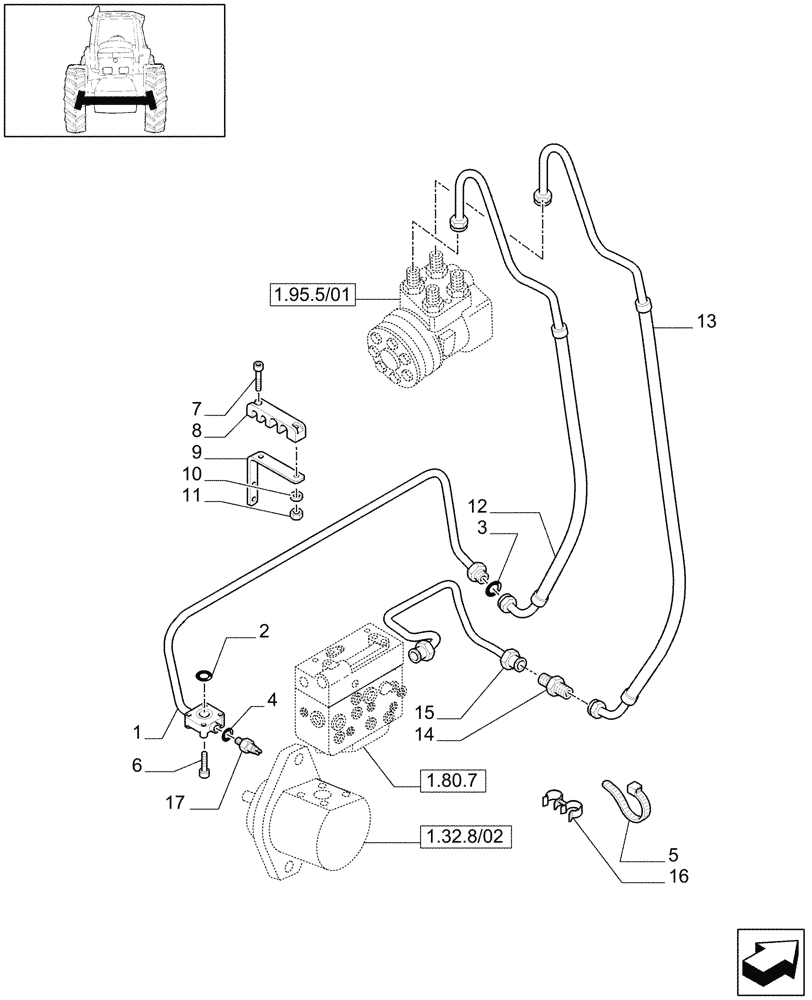

Схема запчастей Case IH MAXXUM 120 - (1.42.0/02[01]) - POWER STEERING DELIVERY AND RETURN PIPES FOR 16X16 AND 17X16 TRANSMISSION - C6562 (04) - FRONT AXLE & STEERING
1.32.8/02
6
16
17
1
13
4
8
5
7
15
14
11
10
3
9
12
2
1.80.7
1.95.5/01

Артикул

Название

Примечание

Количество

1

47123588

HYD TUBE

Incl. 2,3

1шт.

2

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

2шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

47123528

CLAMP

1шт.

9

47124243

BRACKET

1шт.

10

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

11

16100821

NUT,M8, Cl 10

2шт.

12

82036340

HYD TUBE

Feed

1шт.

12

82036217

HYD TUBE

Feed

1шт.

for CAB with Suspension, VAR.330658

1шт.

13

82036341

HYD TUBE

1шт.

13

82036218

TUBE

Return

1шт.

for CAB with Suspension, VAR.330658

1шт.

14

82030315

HYD CONNECTOR

1-14UNF, 13/16 - 16UNF

1шт.

15

87367851

RIGID TUBE,16 mm DIA x 209, 136 mm L

1-14

1шт.

16

82035888

CLIP,16mm

1шт.

17

5161047

PRESSURE SWITCH

1шт.

Выбрано товаров: 21
