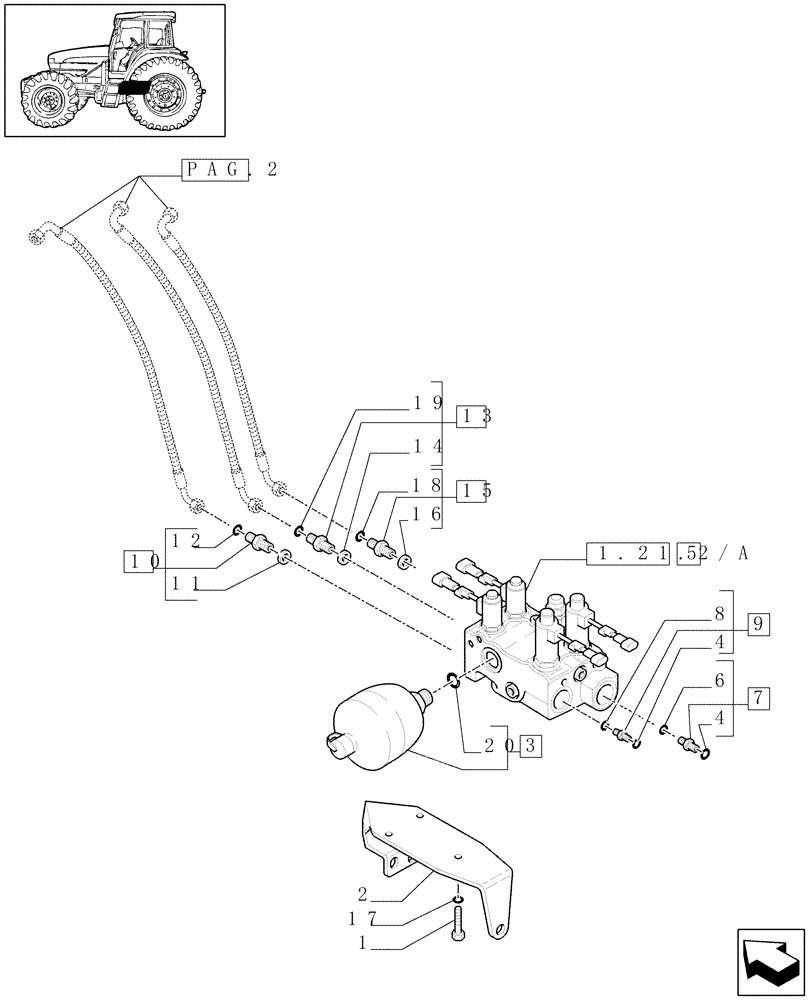

Запчасти Case IH MAXXUM 120 (1.21.2[01]) - 4WD (CL.3) SUSPENDED FRONT AXLE - VALVE SUSPENSION CONTROL - C6385 (VAR.330414-330427) (03) - TRANSMISSION

1

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

2

5198490

SUPPORT

1шт.

3

87354713

ACCUMULATOR

1шт.

4

82019813

SEAL,23.9mm ID x 29.2mm OD x 1.5mm Thk

2шт.

5

47135723

HYDRAULIC VALVE

ASSY

1шт.

47135723R

REMAN-HYD VALVE

MAXXUM 100,MAXXUM 130,MAXXUM 120,MAXXUM 110,MAXXUM 115,MAXXUM 125,MAXXUM 140 ALL (1/07-)

1шт.

47135723C

CORE-VALVE HYD

Return Number

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

47125482

HYD CONNECTOR

M27x2, 1-14

1шт.

8

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

82019639

HYD CONNECTOR

M27x2, 1-3/16"-12

1шт.

10

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

M10x1, 9/16-18

1шт.

11

89825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

13

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

M14x1.5, 11/16"-16

1шт.

14

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

M16x1.5, 13/16"-16

1шт.

16

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

17

12605671

LOCK WASHER,Int Tooth, M10

3шт.

18

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

1шт.

19

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

20

14438285

O-RING,29.5mm ID x 3.0mm

1шт.
