(1.94.0/02) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER

Запчасти Case IH MAXXUM 120 (1.94.0/02) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER (10) - OPERATORS PLATFORM/CAB

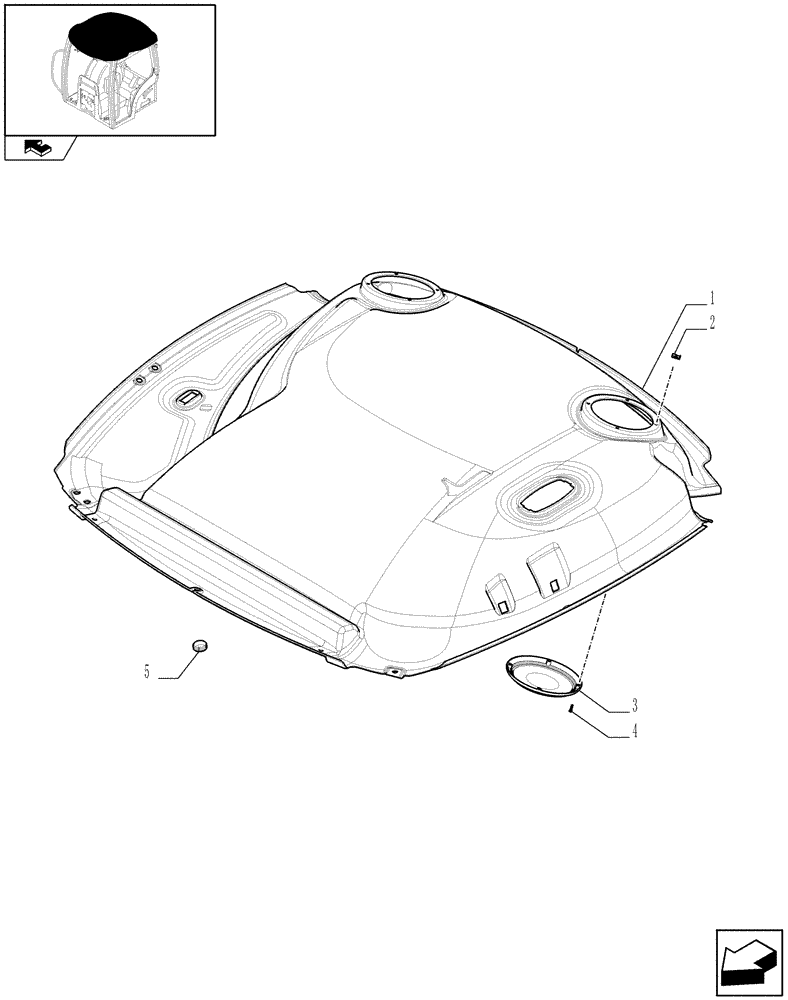

Схема запчастей Case IH MAXXUM 120 - (1.94.0/02) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER (10) - OPERATORS PLATFORM/CAB
5
home
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87621050

ROOF LINING

1шт.

2

81872135

NUT,Retaining, M4.20

8шт.

3

82022875

GRILLE,185mm OD

2шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

87725990

PLUG

1шт.
