Запчасти Case IH MAXXUM 120 (1.76.0/02[01]) - TOUCHSCREEN VIRTUAL TERMINAL (AFS PRO 600) AND REAR ISOBUS - BALEAR BAR MOUNTING (VAR.332761-337761) (06) - ELECTRICAL SYSTEMS

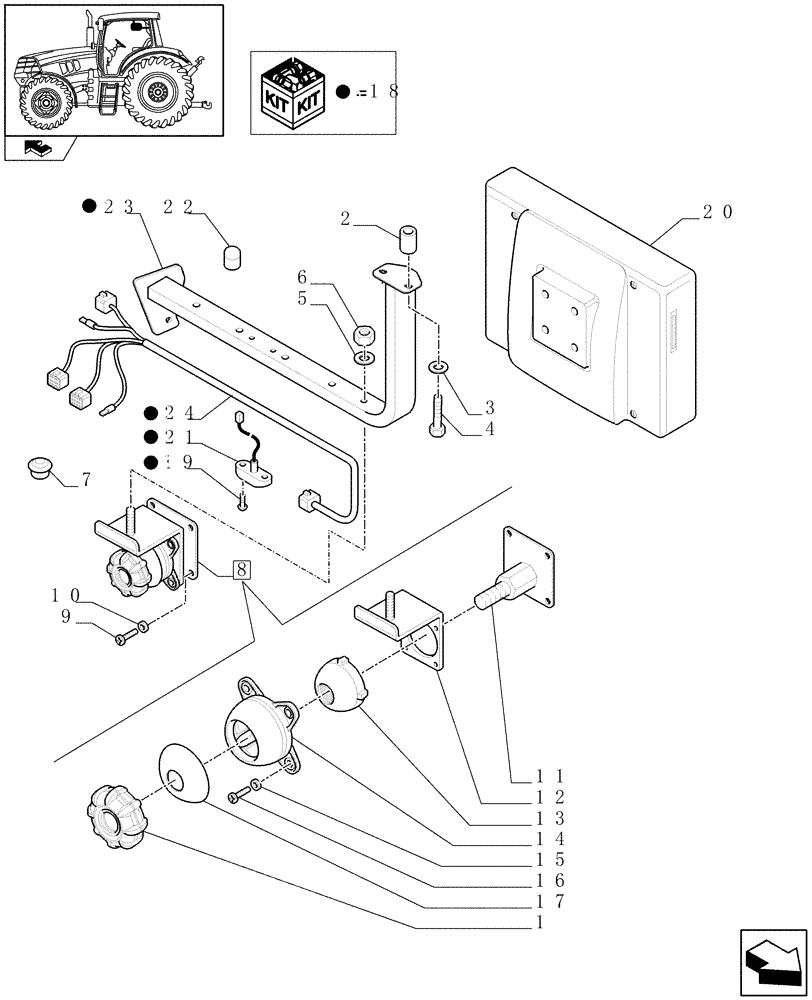

Схема запчастей Case IH MAXXUM 120 - (1.76.0/02[01]) - TOUCHSCREEN VIRTUAL TERMINAL (AFS PRO 600) AND REAR ISOBUS - BALEAR BAR MOUNTING (VAR.332761-337761) (06) - ELECTRICAL SYSTEMS
16
24
22
2
21
10
17
5
home
18
12
15
19
23
8
18
18
18
20
9
18
3
14
18
7
1
6
11
13
4

Артикул

Название

Примечание

Количество

1

87316701

KNOB

1шт.

2

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

7шт.

4

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

4

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

7

81862738

PLUG,M38 x 28 x 5mm

28MM

4шт.

8

87614599

SUPPORT

ASSY

1шт.

9

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

4шт.

10

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

11

87565605

SUPPORT

1шт.

12

87614600

BRACKET

1шт.

13

87614603

CUP,Black

1шт.

14

87614602

BASE

1шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

16

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

17

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

18

87700864

WIRE HARNESS

ASSY, Support With Harness

1шт.

19

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

2шт.

20

84126831

CONTROL MONITOR

DISPLAY

1шт.

20

87385125R

REMAN-ELECT MONITOR

Reman-Monitor Maxxum 110, 115, 120, 125, 130, 140,All w/SN Z*BE40001-->50000 & 60000--->, Reman for New PN 84126831

1шт.

20

87385125C

CORE-MONITOR

Return Part Number

1шт.

21

87565290

LAMP

1шт.

22

5132136

CAP COVER,M8

2шт.

23

87553422

SUPPORT

1шт.

24

87700862

WIRE HARNESS

1шт.

Выбрано товаров: 27
