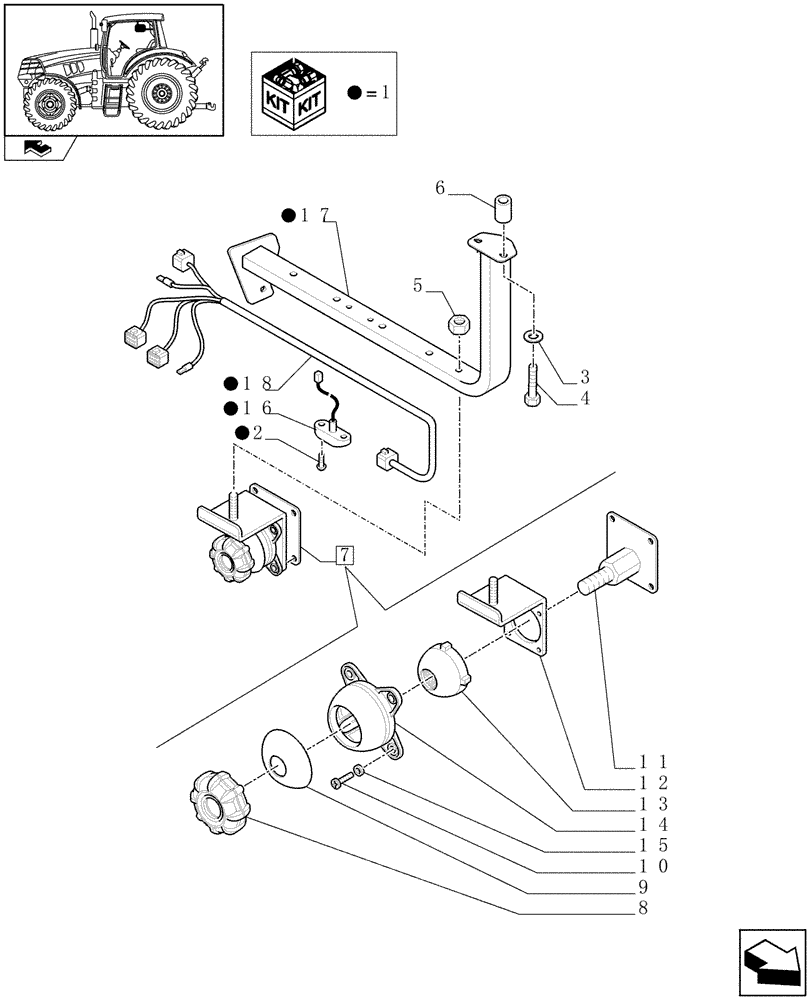

Запчасти Case IH MAXXUM 120 (1.76.0/01[02]) - VIRTUAL TERMINAL (AFS PRO 300) AND REAR ISOBUS - BALER BAR MOUNTING (VAR.331761-336761) (06) - ELECTRICAL SYSTEMS

1

87700864

WIRE HARNESS

ASSY, Support With Harness

1шт.

2

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

10шт.

4

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

4

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

6

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

7

87614599

SUPPORT

ASSY

1шт.

8

87316701

KNOB

1шт.

9

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

10

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

11

87565605

SUPPORT

1шт.

12

87614600

BRACKET

1шт.

13

87614603

CUP,Black

1шт.

14

87614602

BASE

1шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

16

87565290

LAMP

1шт.

17

87553422

SUPPORT

1шт.

18

87700862

WIRE HARNESS

1шт.
