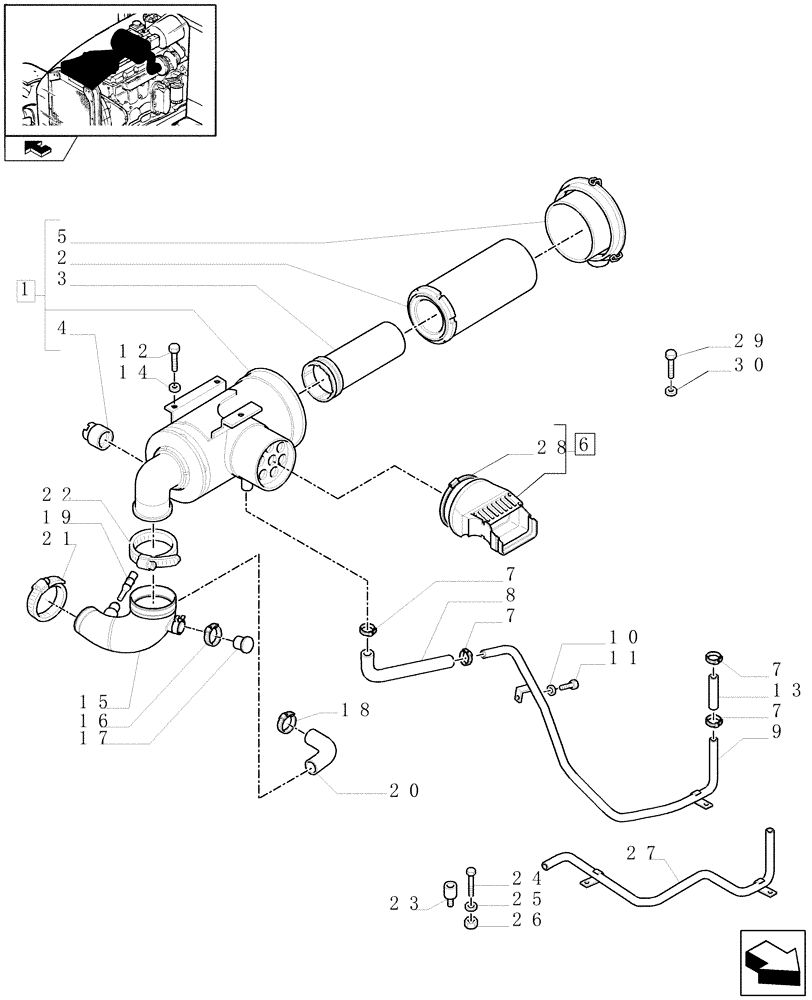

Запчасти Case IH MAXXUM 120 (1.19.1/02) - AIR CLEANER WITH PRE-CLEANER "SPIN TUBE" - DRY AIR FILTER AND PIPES (VAR.330189-331189-332189-333189) (02) - ENGINE EQUIPMENT

1

82034611

AIR CLEANER

ASSY

1шт.

2

82034614

AIR FILTER

1шт.

3

82034608

AIR FILTER

1шт.

4

82029621

INDICATOR

1шт.

5

87301832

COVER

1шт.

6

87518691

DUCT

1шт.

7

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

8

87396929

LARGE HOSE

HOSE,LARGE

1шт.

9

87596752

TUBE,32 mm OD x 610, 135 mm L

1шт.

Air Cleaner with Pre-Cleaner "Spin Tube" less European front Loader, VAR.330189-332189

1шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

13

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

1шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

15

87389107

LARGE HOSE

HOSE,LARGE Incl. 16, 17, 19

1шт.

16

13387570

HOSE CLAMP

1шт.

17

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

18

82039344

HOSE CLAMP,20mm - 32mm

20 x 32 x 12

2шт.

19

87393930

TUBE,23.5 mm OD x 118 mm L

1шт.

20

87398725

HOSE

1шт.

21

82036354

HOSE CLAMP,70mm - 90mm

70/90MM

1шт.

22

82036459

CLAMP,90mm - 110mm

104/138MM

1шт.

23

87344666

ISOLATOR

4шт.

24

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

25

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

8шт.

26

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

27

87619618

TUBE

1шт.

Air Cleaner with Pre-Cleaner "Spin Tube" less European front Loader, VAR.330189-332189

1шт.

28

82021427

CLAMP

1шт.

29

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

30

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.
