(90.160.BL[07]) - VAR - 743686, 743733 - CAB INTERIOR TRIM, RIGHT SIDE

Запчасти Case IH MAXXUM 120 (90.160.BL[07]) - VAR - 743686, 743733 - CAB INTERIOR TRIM, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

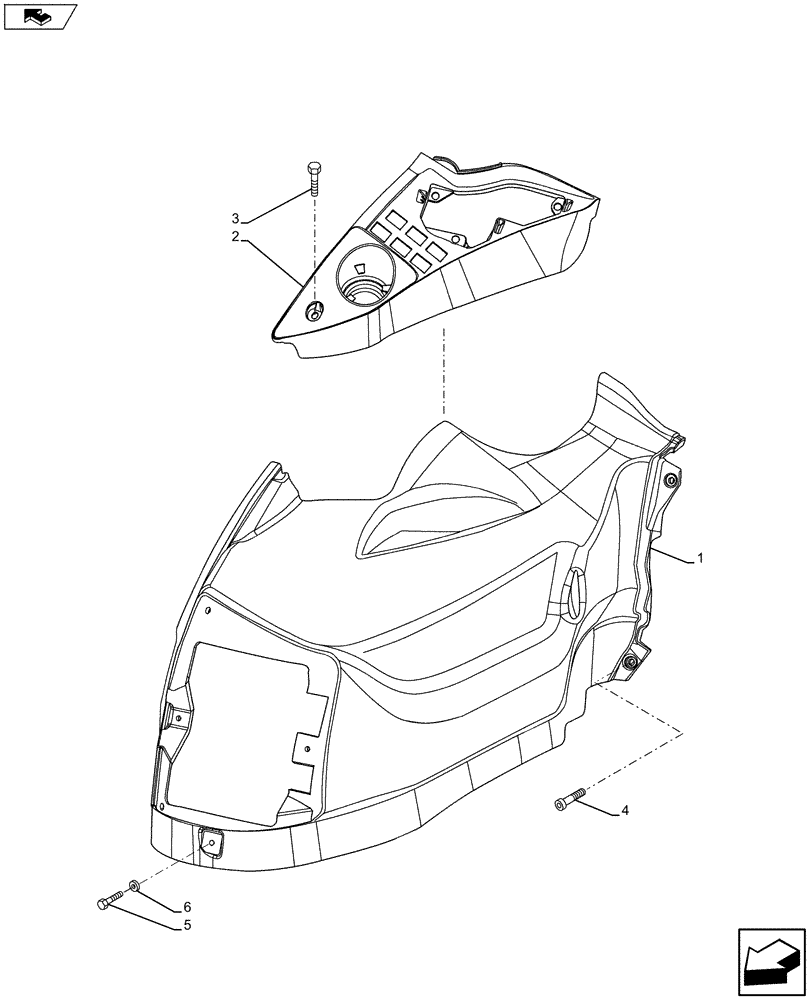

Схема запчастей Case IH MAXXUM 120 - (90.160.BL[07]) - VAR - 743686, 743733 - CAB INTERIOR TRIM, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
6
4
home
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84242720

TRIM PANEL

1шт.

2

84206691

COVER

1шт.

3

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

4шт.

4

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

5

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

6

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

Выбрано товаров: 6
