Запчасти Case IH MAXXUM 120 (90.160.BL[03]) - VAR - 332801, 744740 - CAB INTERIOR TRIM, RIGHT SIDE, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

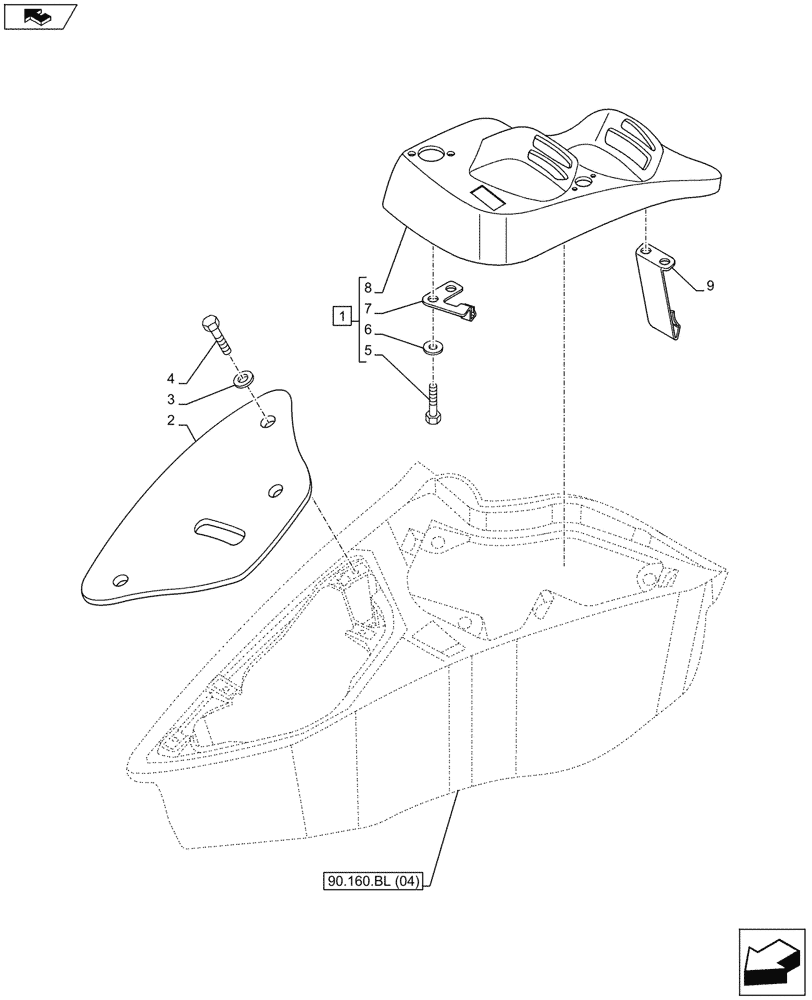

Схема запчастей Case IH MAXXUM 120 - (90.160.BL[03]) - VAR - 332801, 744740 - CAB INTERIOR TRIM, RIGHT SIDE, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl (04)
4
8
3
2
1
5
7
9
home
6

Артикул

Название

Примечание

Количество

1

84316372

TRIM PANEL,Concole

ASSY, Incl 5 - 9

1шт.

2

84271249

COVER

1шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

4

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

3шт.

5

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

6шт.

6

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

6шт.

7

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Clip, Incl in 1

2шт.

Выбрано товаров: 9
