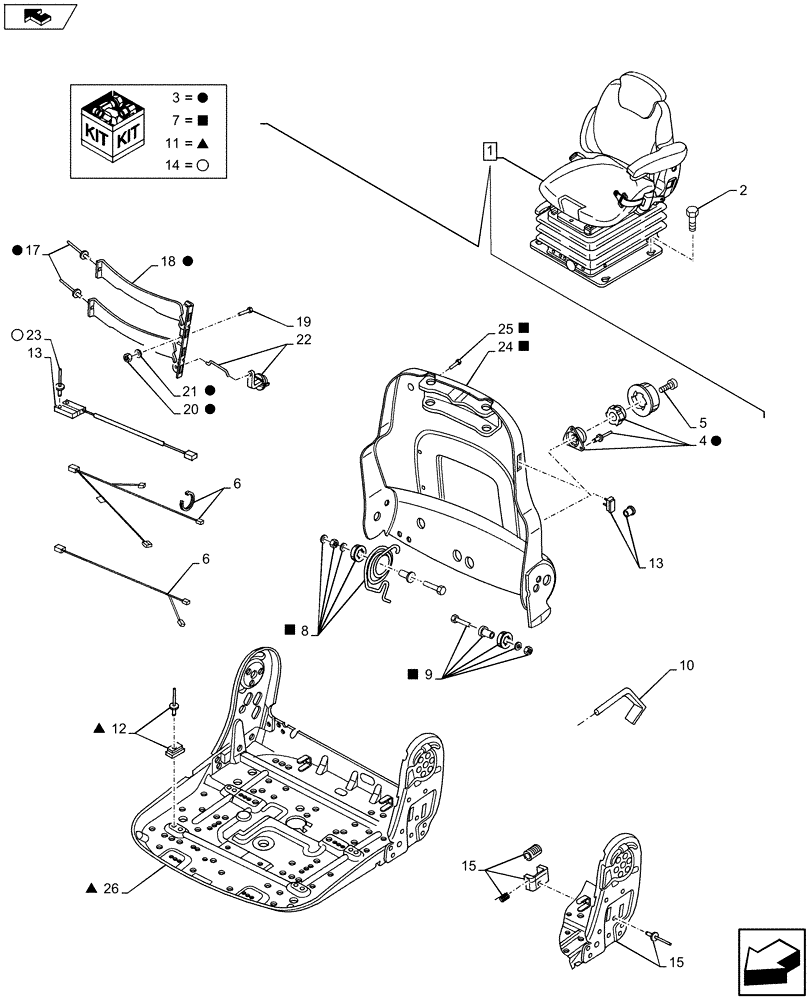

Запчасти Case IH MAXXUM 120 (90.124.AM[02]) - VAR - 332709 - DELUXE SUSPENSION SEAT, HEATED (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84171102

SEAT

ASSY, Incl 2 - 26

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M8 X 20 RND WSHR-HD TORX 8.8 POL

4шт.

3

345767A1

SUPPORT

1шт.

4

84191199

ACTUATOR

1шт.

5

82034964

HANDLE

1шт.

6

84191207

KIT

1шт.

7

84191121

BACKREST

1шт.

8

84191131

SET OF PARTS

1шт.

9

84191196

SET OF PARTS

1шт.

10

82034960

LEVER

1шт.

11

84191188

REPAIR KIT

1шт.

12

84191178

SET OF PARTS

1шт.

13

84525783

SWITCH

1шт.

14

84191201

SET OF PARTS

1шт.

15

82034946

SERVICE KIT

1шт.

16

84223027

SWITCH

Operator Presence

1шт.

17

NSS

NOT SOLD SEPARAT

Rivet, Incl in 3

1шт.

18

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

19

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

1шт.

20

NSS

NOT SOLD SEPARAT

Nut, Incl in 3

1шт.

21

NSS

NOT SOLD SEPARAT

Washer, Incl in 3

1шт.

22

NSS

NOT SOLD SEPARAT

Lever, Incl in 3

1шт.

23

NSS

NOT SOLD SEPARAT

Rivet, Incl in 14

1шт.

24

NSS

NOT SOLD SEPARAT

Frame, Incl in 7

1шт.

25

NSS

NOT SOLD SEPARAT

Screw, Incl in 7

1шт.

26

NSS

NOT SOLD SEPARAT

Seat, Incl in 11

1шт.
