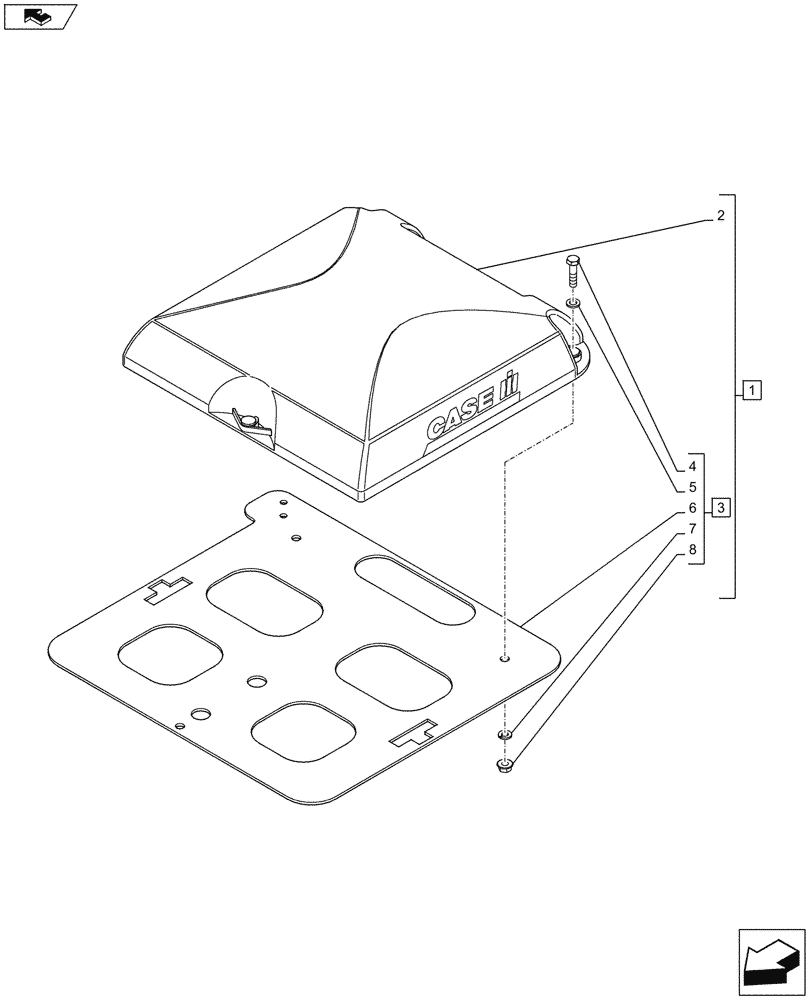

Запчасти Case IH MAXXUM 120 (55.911.AD[02]) - VAR - 330084 - GPS RECEIVER, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

84588269

AFS PARTS & PACKAGES

ASSY, Incl 2, 3

1шт.

1

84588269R

REMAN ELECT CONTROL

1шт.

1

84588269C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84574273

GPS RECEIVER

1шт.

2

84574273R

REMAN ELECT CONTROL

1шт.

2

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

87491301

MOUNTING PLATE

ASSY, Incl 4 - 8

1шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

Without Radio Receiver

1шт.

4

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

With Radio Receiver

1шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

6

87496985

MOUNTING PLATE

GPS Receiver

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

8

86511444

FLANGE NUT,Hex, M6 x 1

3шт.
