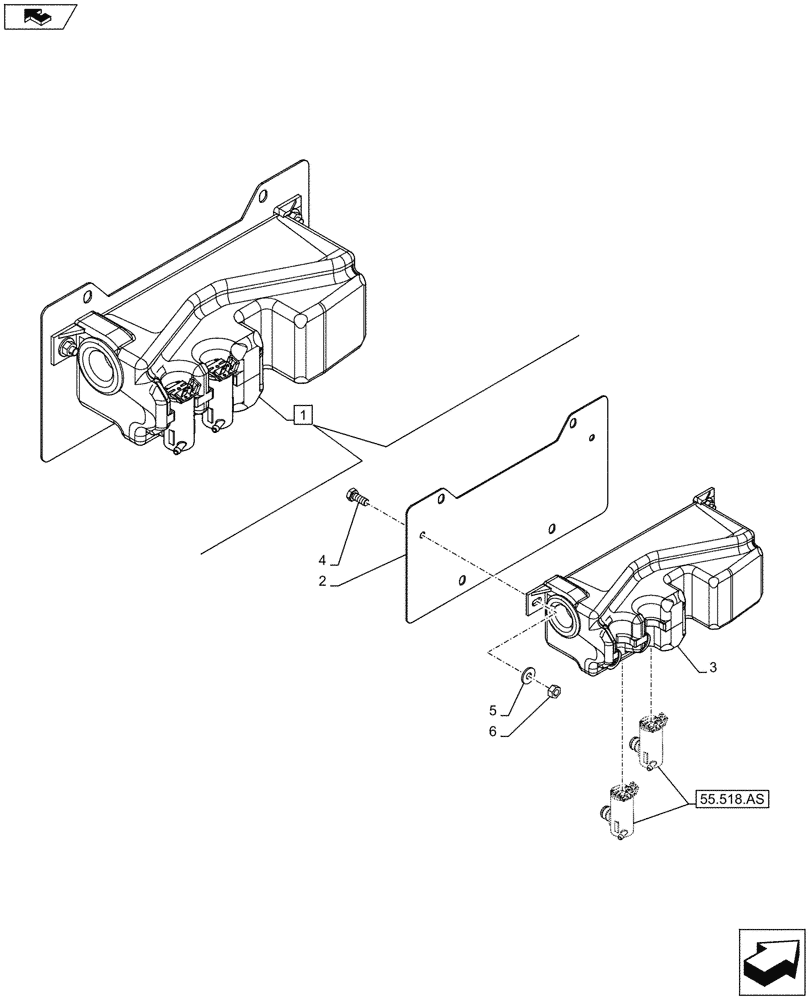

Запчасти Case IH MAXXUM 120 (55.518.AT[02]) - VAR - 330520, 331515, 331520, 392500, 743729 - WINDSHIELD WASHER RESERVOIR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87638112

RESERVOIR, WINDSHIEL

Twin Pumps, ASSY, Incl 2 - 6

1шт.

See also Windshield Reservoir Components in Figure 55.518.AS

1шт.

2

87638111

PLATE

Mounting Plate Bottle

1шт.

3

82030995

RESERVOIR, WINDSHIEL

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
