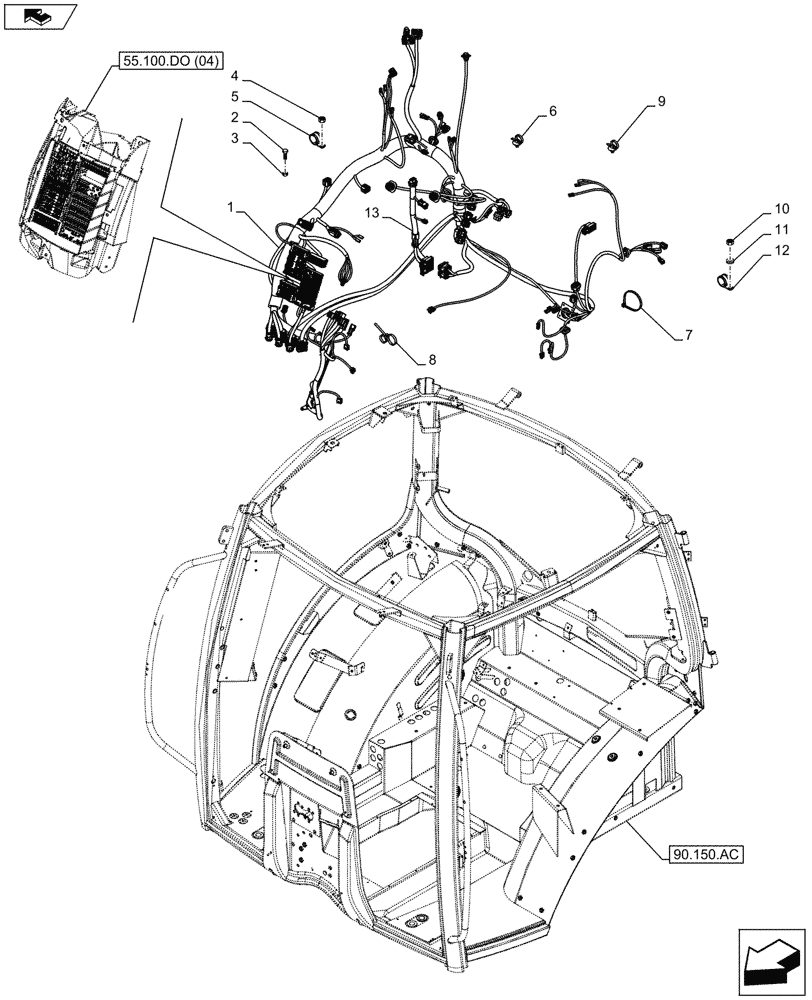

Запчасти Case IH MAXXUM 120 (55.510.AF) - VAR - 332351, 391223 - CAB, HARNESS (55) - ELECTRICAL SYSTEMS

1

47358680

WIRE HARNESS

ASSY, Cab

1шт.

See also Figure 55.100.DO (04), 55.100.DO (05), 55.100.DO (06), 55.100.DO (07), 55.100.DO (08)

1шт.

2

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

2шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

5

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

6

82033028

CABLE TIE,170mm L

1шт.

7

82001040

CABLE TIE,.19" x 11.5"

2шт.

8

82013031

CABLE TIE,193mm L

3шт.

9

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

10

83958007

NUT,M8, G8

1шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

12

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

13

84195894

WIRE HARNESS

Garu

1шт.
