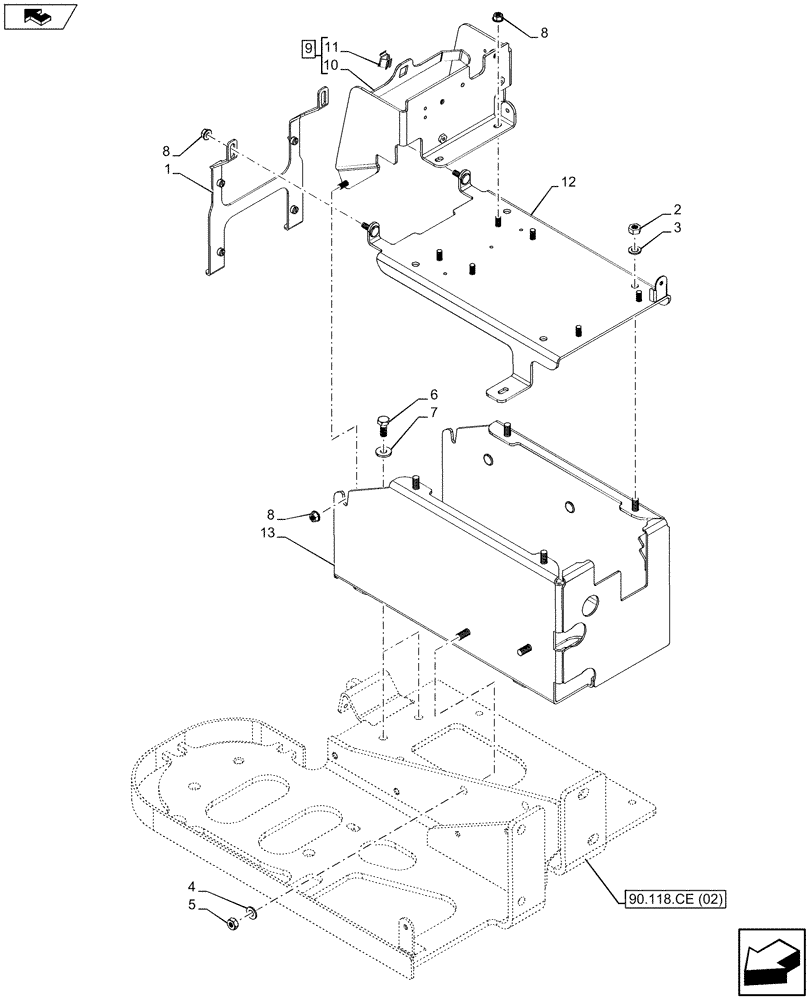

Запчасти Case IH MAXXUM 120 (55.302.AH[01]) - VAR - 336138, 390510 - BATTERY BOX (55) - ELECTRICAL SYSTEMS

1

84469738

BRACKET

1шт.

2

100016

NUT,M10 x 1.5, Cl 8

4шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

11 X 20 X 2 MM CST ZND

4шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.5 X 21 X 2 MM CST ZND

2шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

M10

2шт.

6

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

7

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

10.2 X 25 X 3 MM CST ZND

4шт.

8

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

9

47581270

BRACKET

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Bracket, Incl in 9

1шт.

11

84590657

RETAINER

1шт.

12

84573418

1шт.

13

47516269

BATTERY BOX

1шт.
