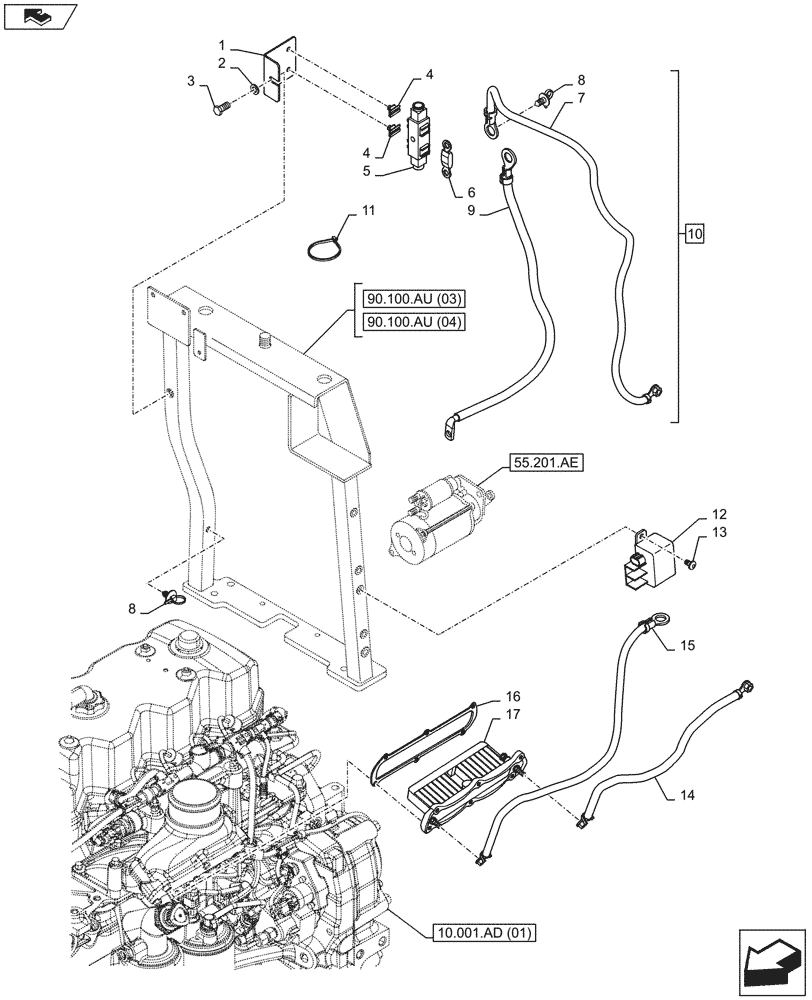

Запчасти Case IH MAXXUM 120 (55.202.AA) - VAR - 332346, 332347, 332348 - GRID HEATER (55) - ELECTRICAL SYSTEMS

1

84551592

BRACKET

Grid Heater

1шт.

2

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

1шт.

3

16043514

SCREW,Hex, M8 x 22mm, Cl 5.8

1шт.

4

87323673

BRACKET

2шт.

5

82027575

FUSE HOLDER

Grid Heater

1шт.

6

11056290

FUSE,125A, Maxi

Grid Heater, Green

1шт.

7

NSS

NOT SOLD SEPARAT

Cable, Incl in 10

1шт.

8

82033028

CABLE TIE,170mm L

2шт.

9

NSS

NOT SOLD SEPARAT

Cable, Incl in 10

1шт.

10

84551572

WIRE HARNESS

Grid Heater, Incl 4 - 9

1шт.

11

14560187

COLLAR,199mm L

3шт.

12

82022813

RELAY,12V, High Current

Grid Heater

1шт.

13

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

14

82036465

WIRE HARNESS,500mm L

Grid Heater

1шт.

15

87316233

ELECTRIC CABLE

Grid Heater

1шт.

16

2854701

GASKET,0.8mm Thk

1шт.

17

2854837

HEATER

Grid

1шт.
